Structure of Core Drilling Rig

Light‑weight, Flexible, Safe & Reliable

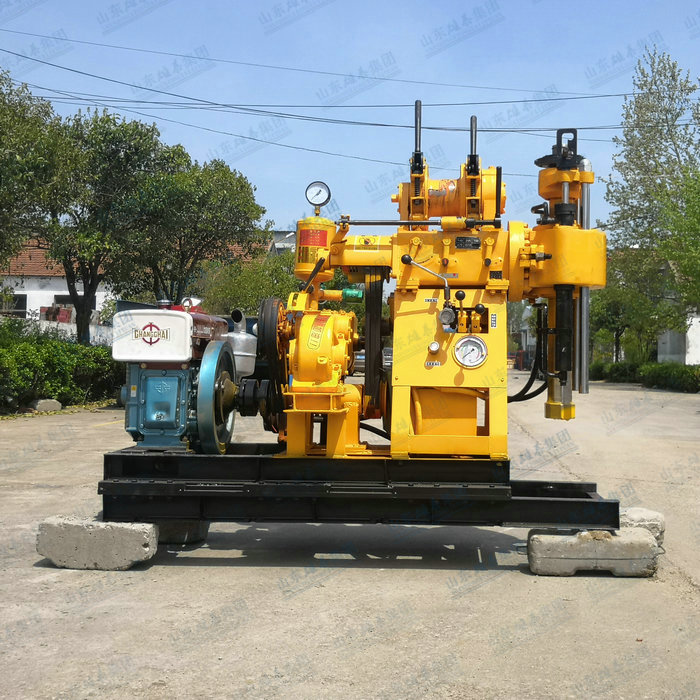

The drilling rig boasts a compact and simple structure.

All components including drill rods can be transported by a single 5‑ton truck.

In areas with poor transportation, parts can be carried by manpower or pack horses along narrow trails.

It greatly saves your investment on temporary‑road construction, shortens exploration period, cuts labor cost and reduces handling risks.

Hydraulically‑driven and modular‑designed, the rig is safe, reliable and user‑friendly to operate, which effectively lowers working intensity.

12V DC power supply is adopted for the whole unit for higher electrical safety.

Easy disassembly and assembly make on‑site relocation much simpler.

The maximum weight of a single component is no more than 250 kg, and the total weight of the rig is 1200 kg.

Novel‑Style Mast, Safe Structure

The mast angle can be adjusted from 45° to 90°.

The rig is capable of inclined‑hole drilling ranging from ‑45° to ‑90°.

No need to climb up the mast for operation, which lowers safety risks and improves the safety factor of field work.
