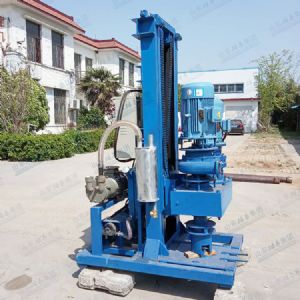

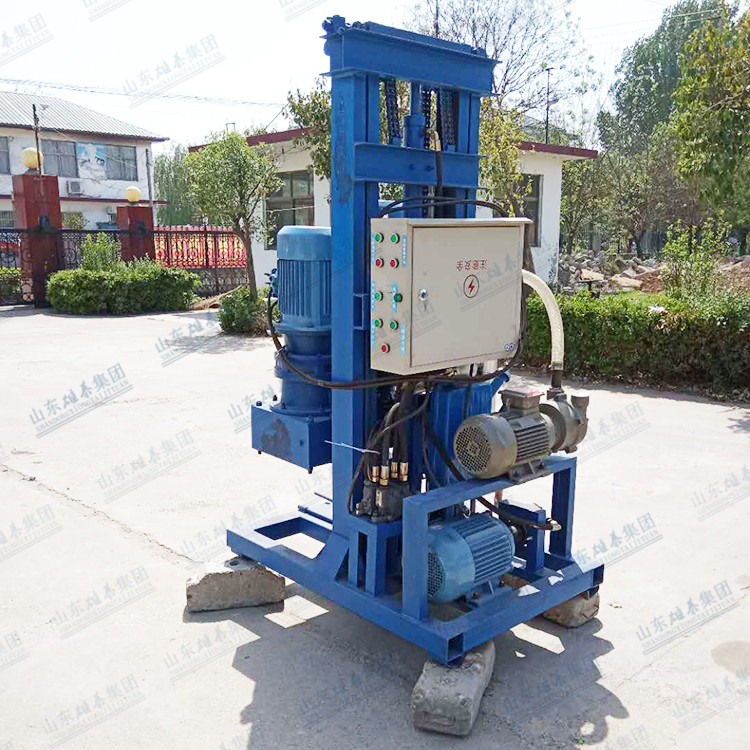

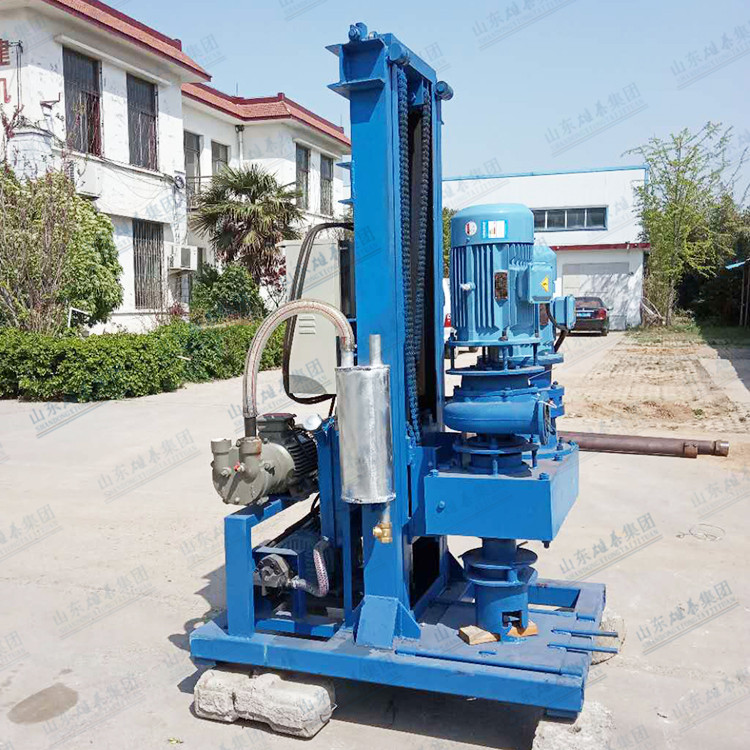

1. Product Introduction

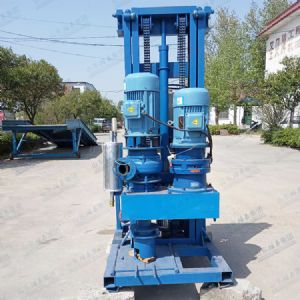

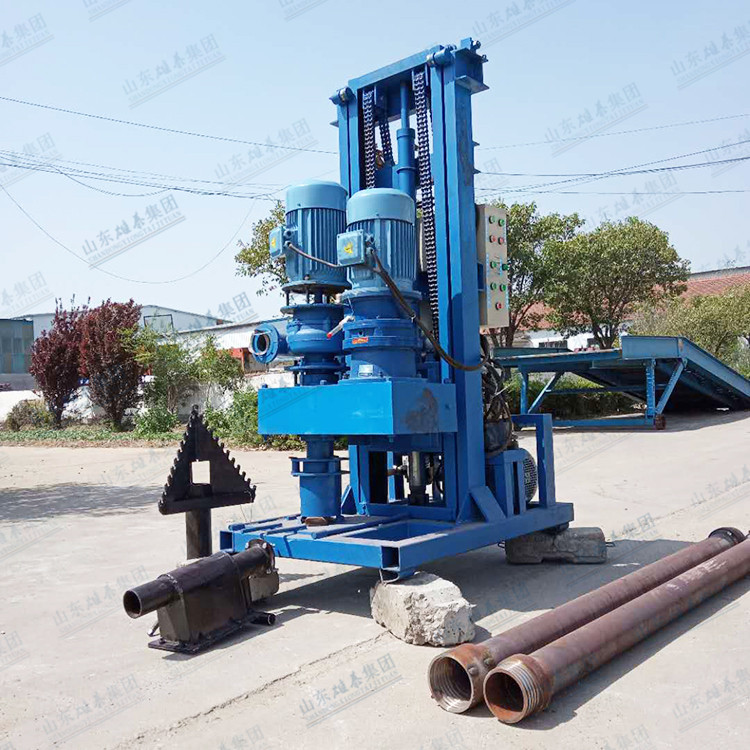

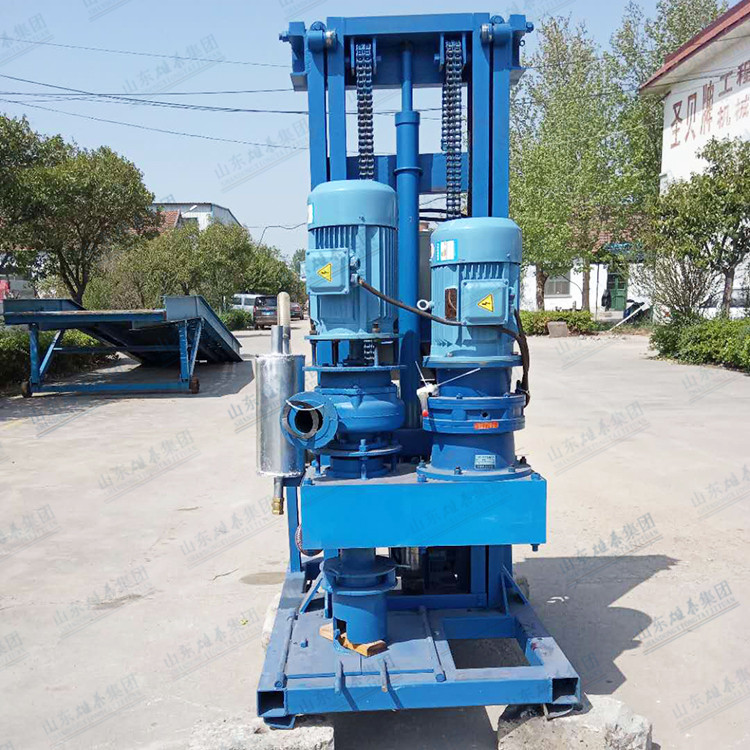

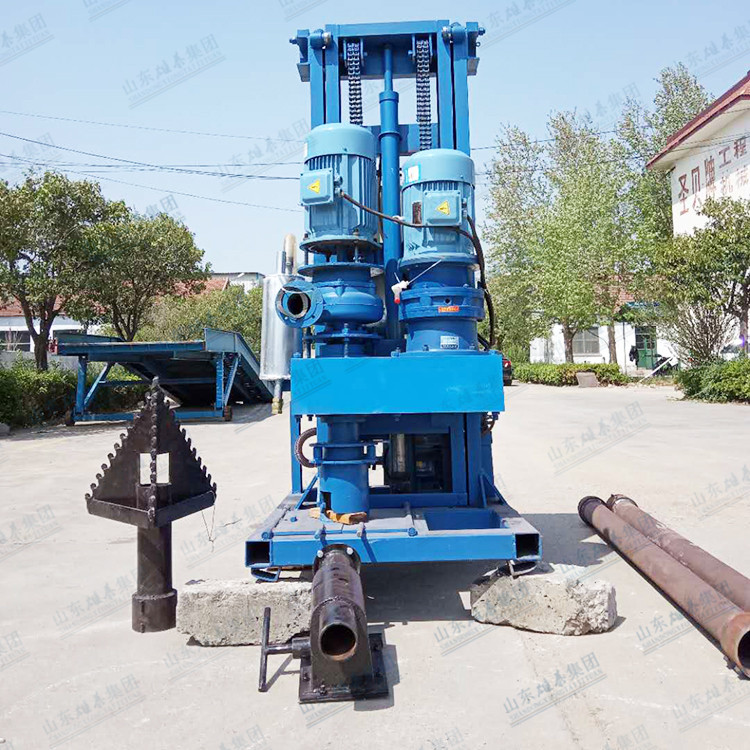

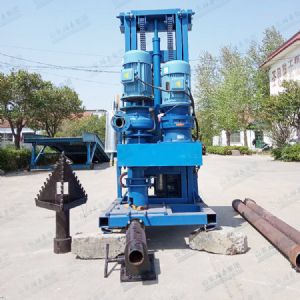

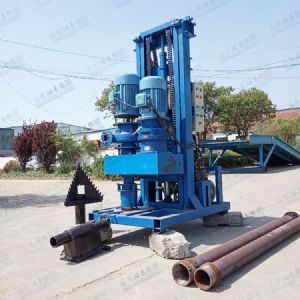

The SJZ-500F compact electric water well drilling machine is widely utilized for household well drilling, factory well construction, domestic water supply, farmland irrigation wells, water air conditioner installation, solar water heater supporting installation, construction site piling and other working scenarios. This water well drilling rig features low water consumption during operation, stable borehole wall to prevent collapse, and high efficiency for locating water-bearing strata.
2. Product Parameters
| Model | SJZ-500F |
| Power Supply | 3-phase 380V motor, adjustable speed, forward & reverse rotation available |
| Motor Power | 7.5kW per motor, total 2 motors |
| Drilling Diameter | 50-400mm |
| Drill Rod Diameter | 89mm and other sizes, multiple lengths optional |
| Drill Bit Specification | Alloy & diamond bits in various diameters optional |
| Drilling Depth | 130m |
| Machine Weight | 180kg |
| Applicable Strata | Clay layer, quicksand layer, minor rock layer, pebbles, etc. |

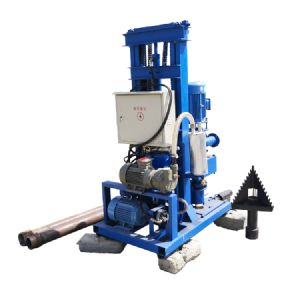

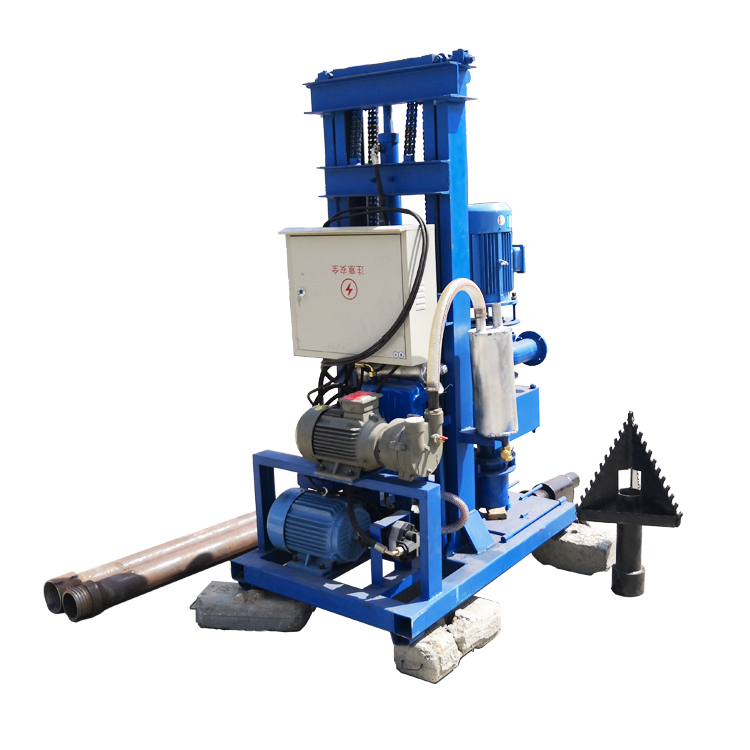

SJZ-500F
