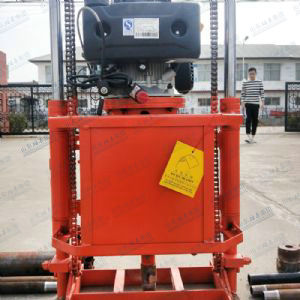

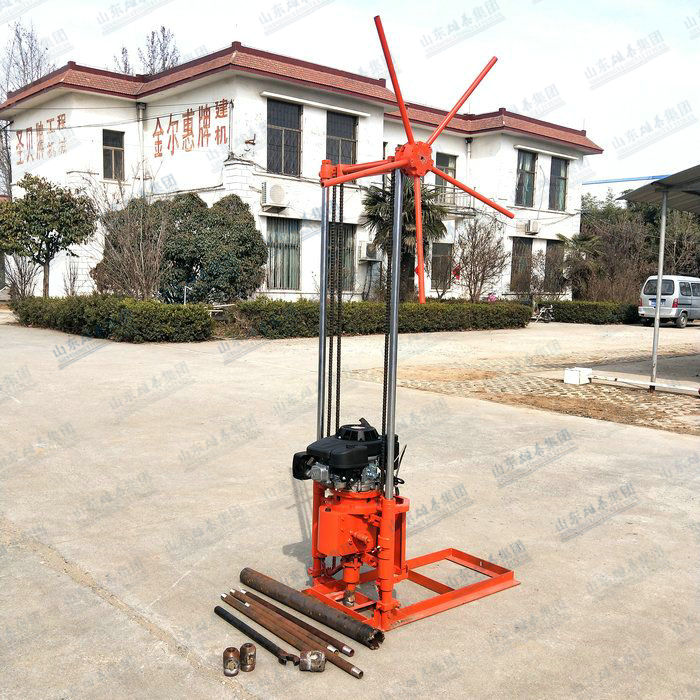

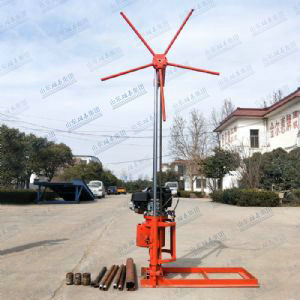

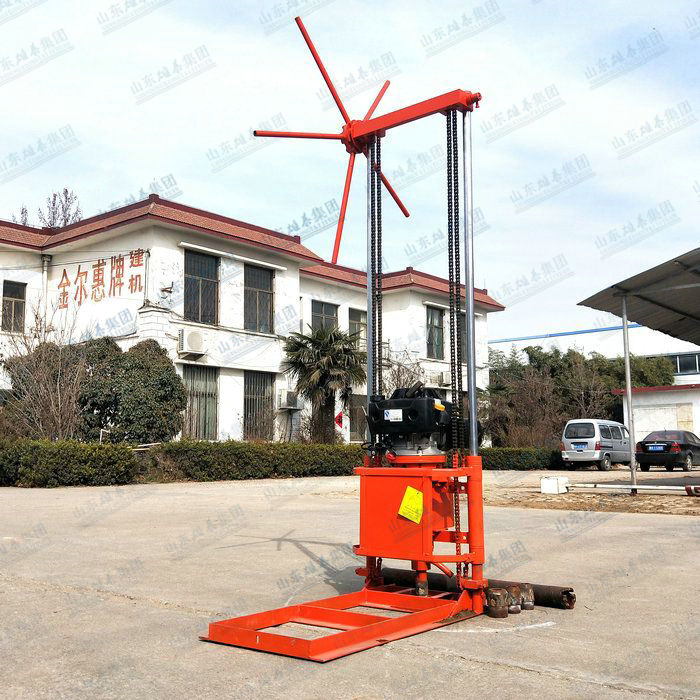

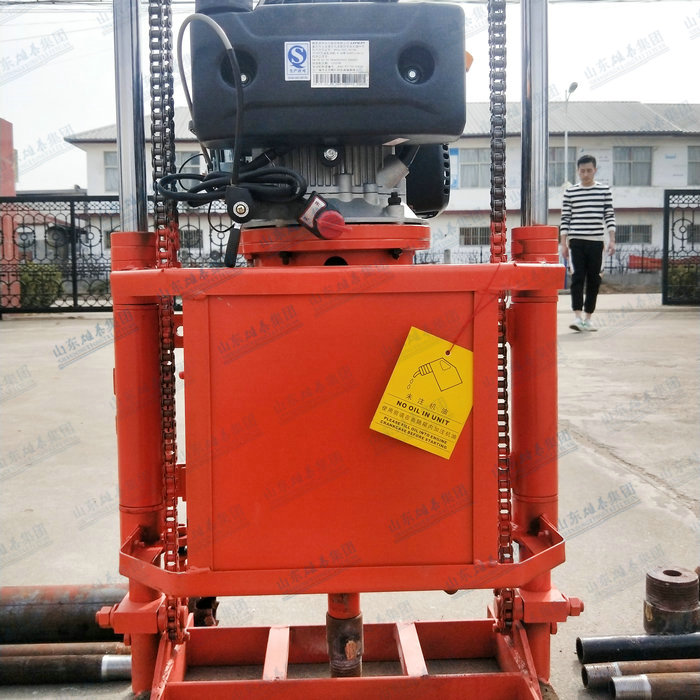

I. Product Features

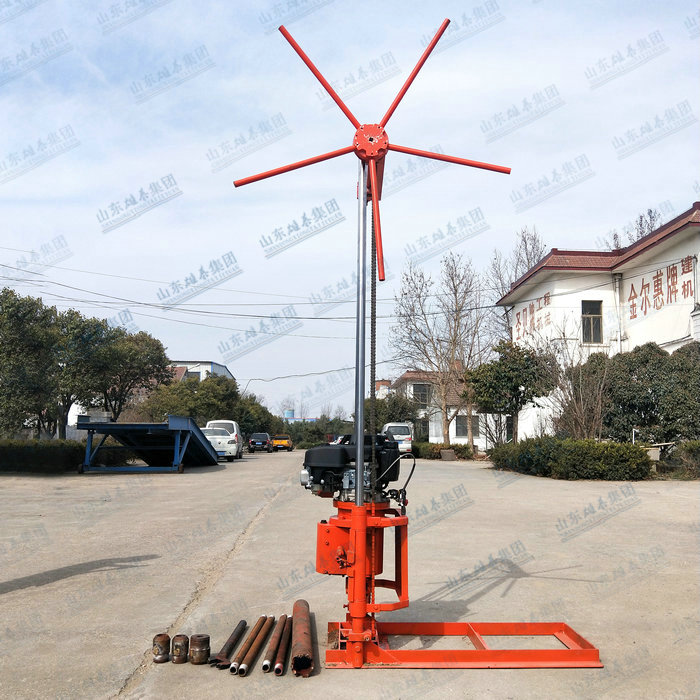

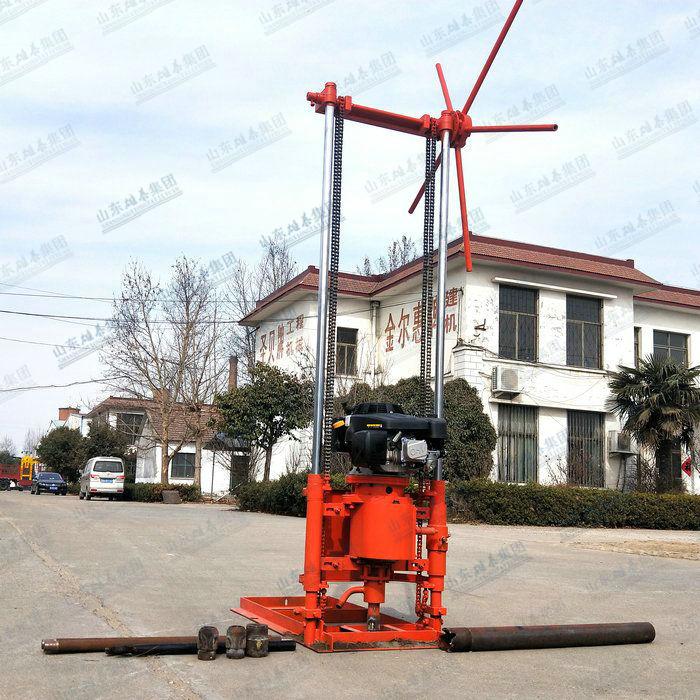

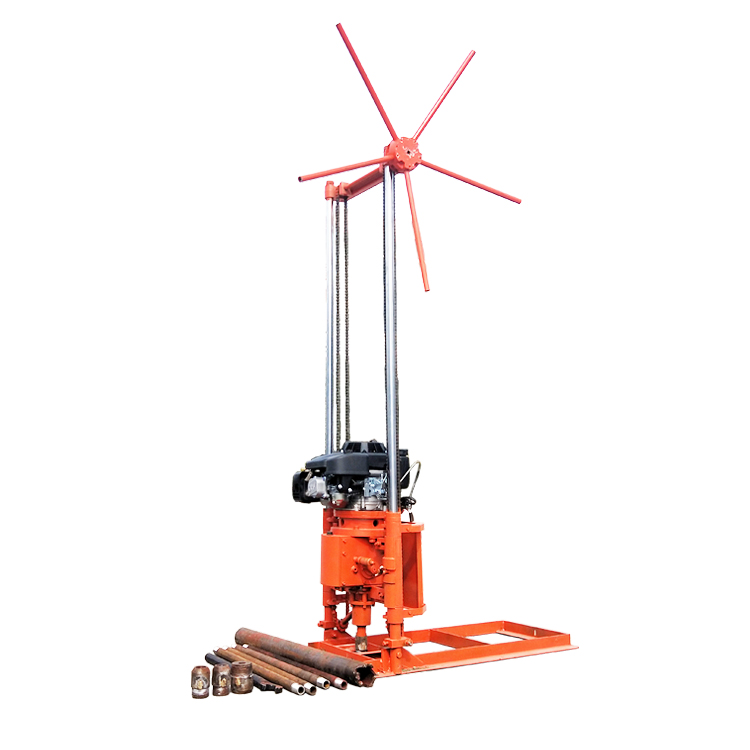

Model BZ-30 gasoline lightweight drill is a mature micro engineering rig developed by our company after long-term research, featuring high torque, light weight and multi-functional performance.
It is suitable for mountain prospecting, geological survey, geophysical hole drilling, grouting hole drilling, blast hole drilling and inspection hole drilling in industries including industrial & civil construction, bridges, railways and highways.
II. Product Advantages
The main body of the machine is made of aluminum alloy to greatly reduce overall weight. It boasts a compact structure, small size and light weight. Equipped with two-speed shifting, it is easy to transport and relocate.
III. Drill Parameters

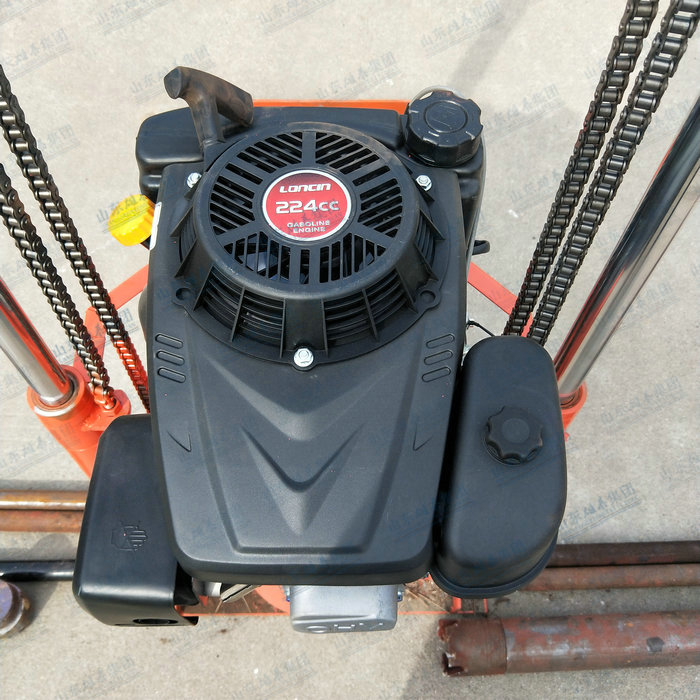

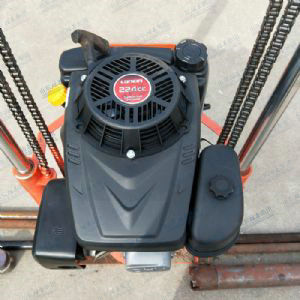

The BZ-30 lightweight drill is powered by a 224cc gasoline engine with strong horsepower and ample power output. Drilling diameters range from 45mm to 108mm. It supports manual feeding for fast penetration rate. Its compact overall dimensions can meet your actual working demands.
| BZ-30 Lightweight Sampling Drill | ||
| Drilling Diameter（mm） | 45-108 | |
| Drilling Depth(m） | 30 | |
| Drill Rod Diameter(mm) | 32 | |
| Gasoline Engine | Displacement（cc） | 224 |
| Horsepower（HP） | 6（4.5KW） | |
| Drill Weight（KG） | 101 | |
IV. Complete Configuration of Model BZ-30 Gasoline Lightweight Sampling Drill
| Name | Model | Unit | Quantity |
|---|---|---|---|
| Gasoline Sampling Drill | BZ-30 | Set | 1 |
| Drill Rod | Φ32*750 | Piece | 20 |
| Coupling Sleeve | φ40 | Pair | 20 |
| Core Adapter Head | Φ45 Male / 38 Female | Piece | 2 |
| Core Barrel | φ45, 0.75m per piece | Piece | 1 |
| Alloy Drill Bit | Φ46 | Piece | 1 |
| Core Adapter Head | Φ60 Male / 38 Female | Piece | 1 |
| Core Barrel | φ60, 0.75m per piece | Piece | 1 |
| Alloy Drill Bit | Φ60 | Piece | 1 |
| Soil Cleaning Bit | Φ73 | Piece | 1 |
| Support Fork | — | Piece | 1 |
| Wrench Fork | — | Piece | 1 |
| Steering Assembly | — | Set | 1 |
(Please specify separately if high-pressure pump and high-pressure water hose are required)
