Product Features

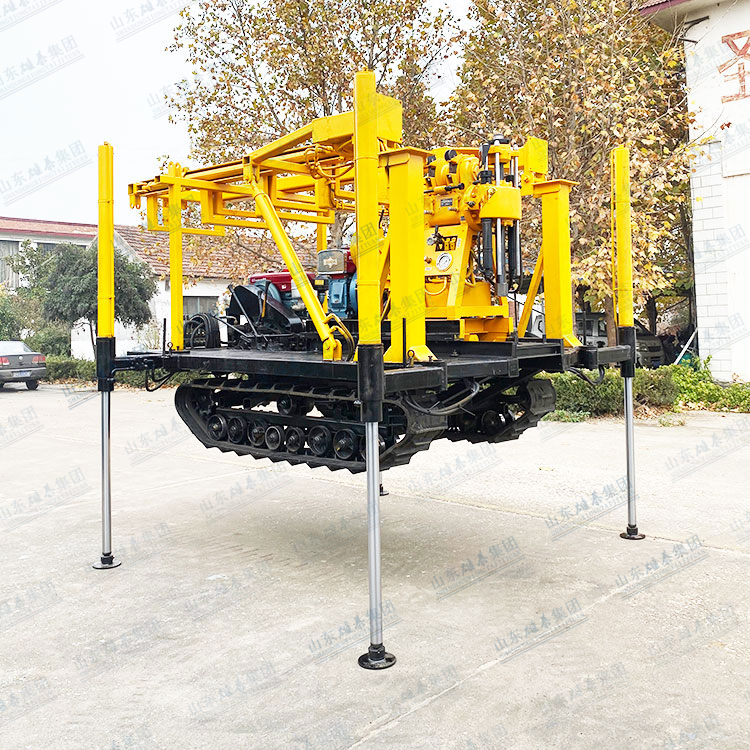

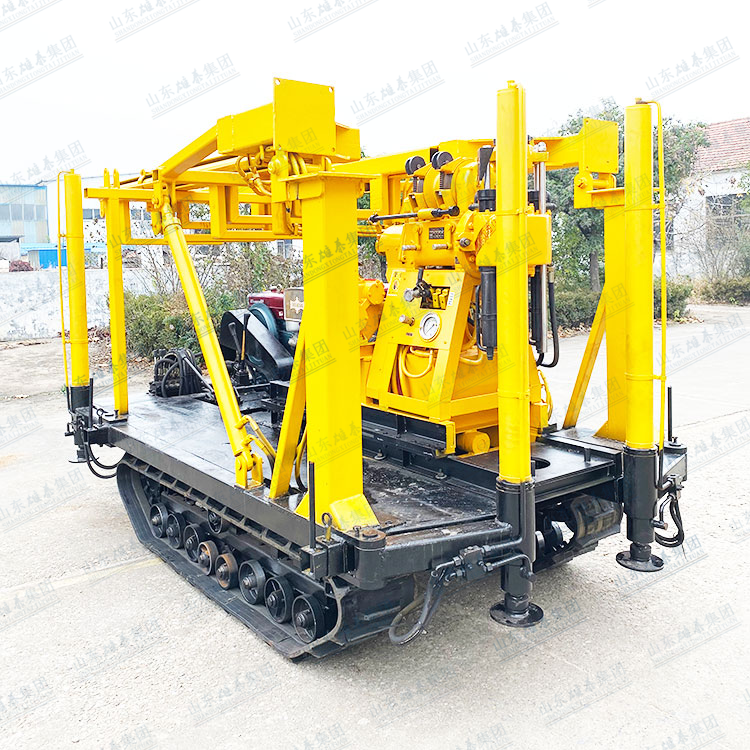

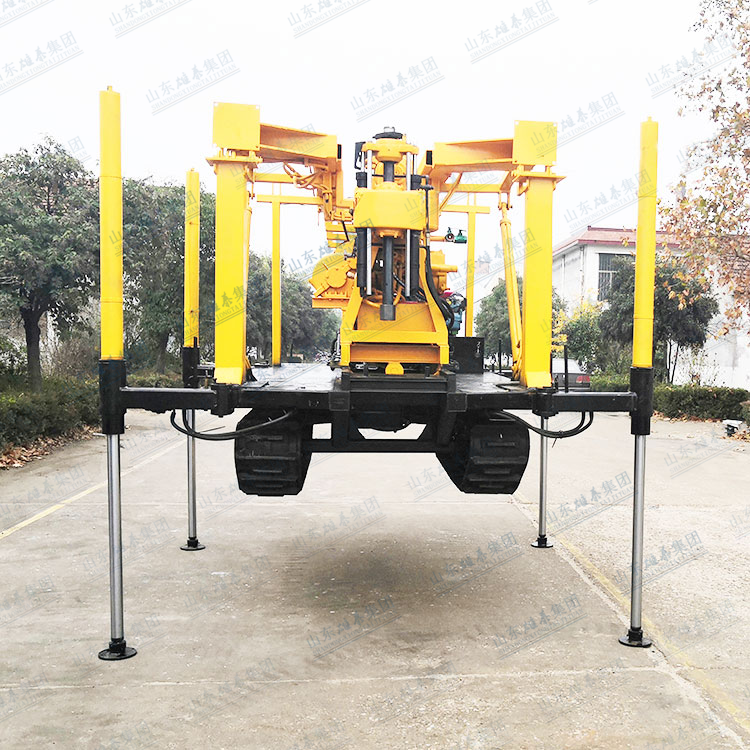

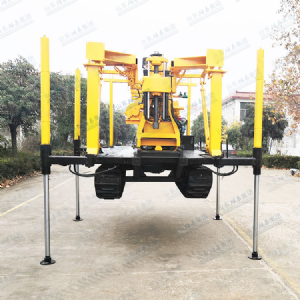

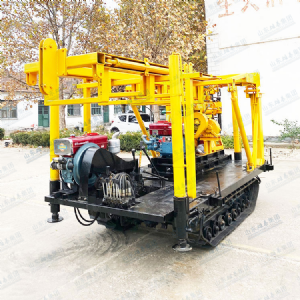

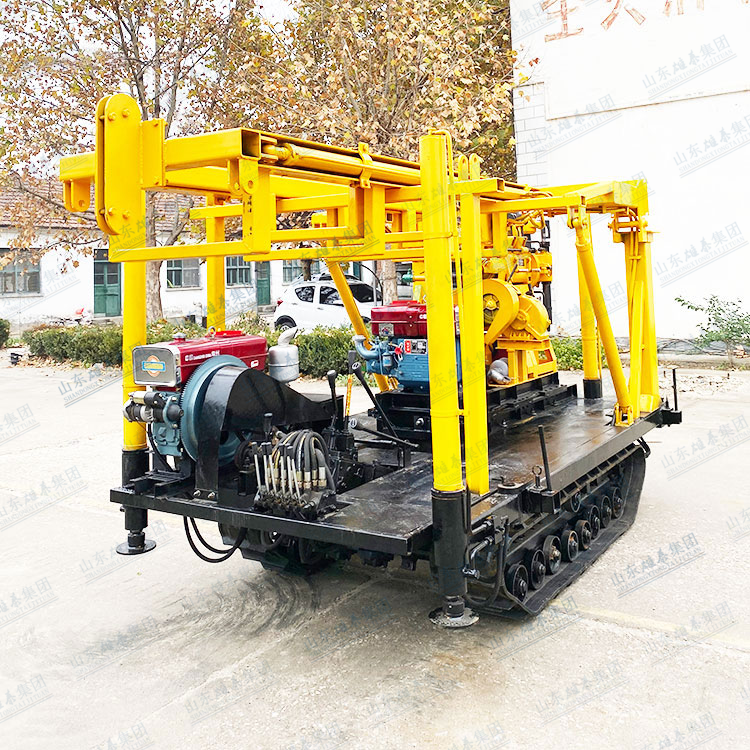

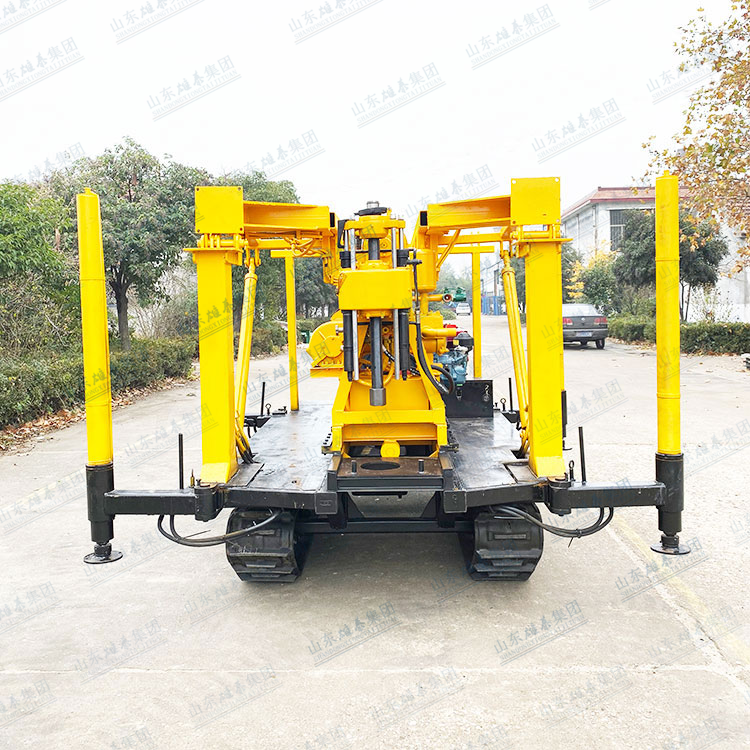

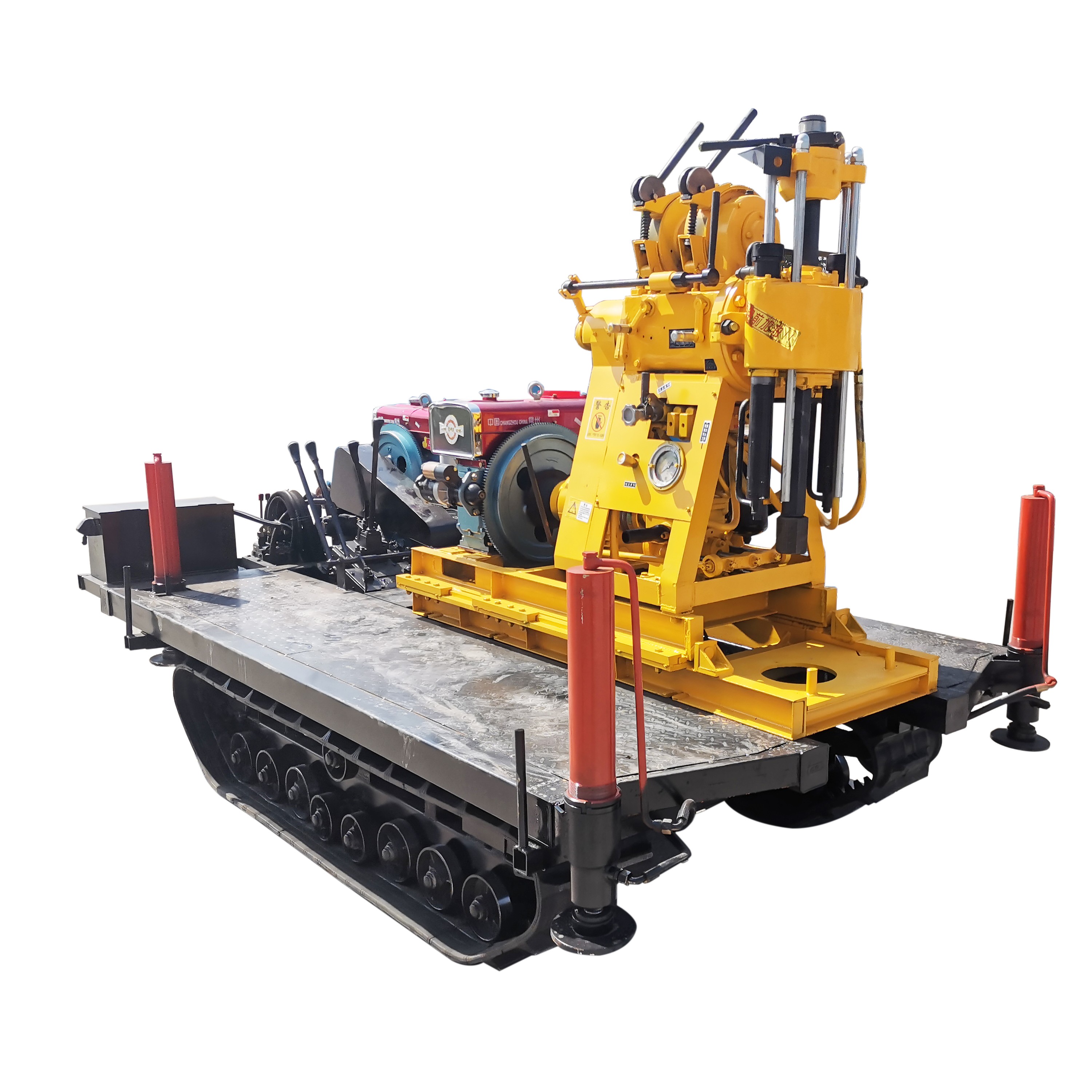

The BZ-100 100-meter drill rig manufactured by Shandong Xiongtai has overall dimensions (L×W×H): 1640×1030×1440 mm. It is mainly applied for general geological survey, geophysical prospecting, road & construction geological investigation, as well as blast hole drilling projects.

Product Advantages

1.Equipped with automatic hydraulic feed mechanism to improve drilling efficiency and reduce operators' physical labor.

2.Ball-type clamping structure replaces traditional chuck to realize rod tripping without shutdown for easy, safe and reliable operation.

3.Fitted with bottom-hole pressure gauge to monitor downhole working conditions conveniently.

4.Centralized control handles for simple operation.

5.Compact layout: drill unit, water pump and diesel engine are all mounted on one single base, requiring small floor space.

6.Lightweight and easy to disassemble for convenient transportation, suitable for construction on plains and mountainous areas.

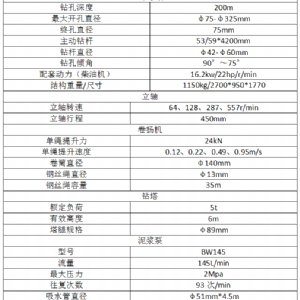

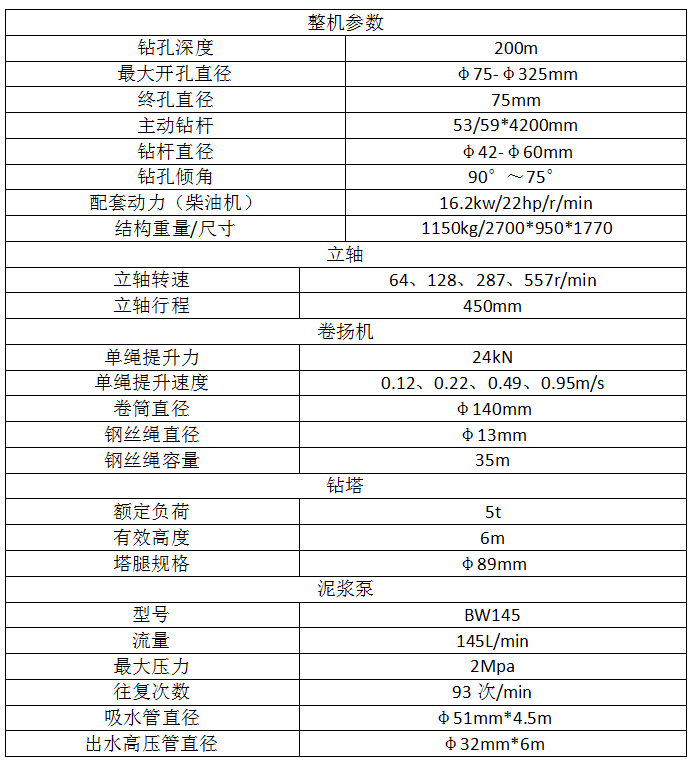

BZ-100L  Drill Rig Technical Parameters
