I. Product Features

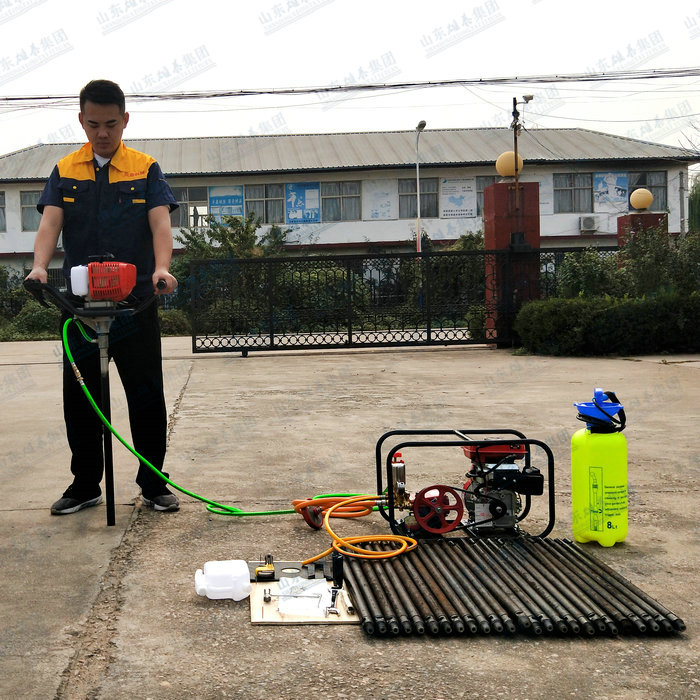

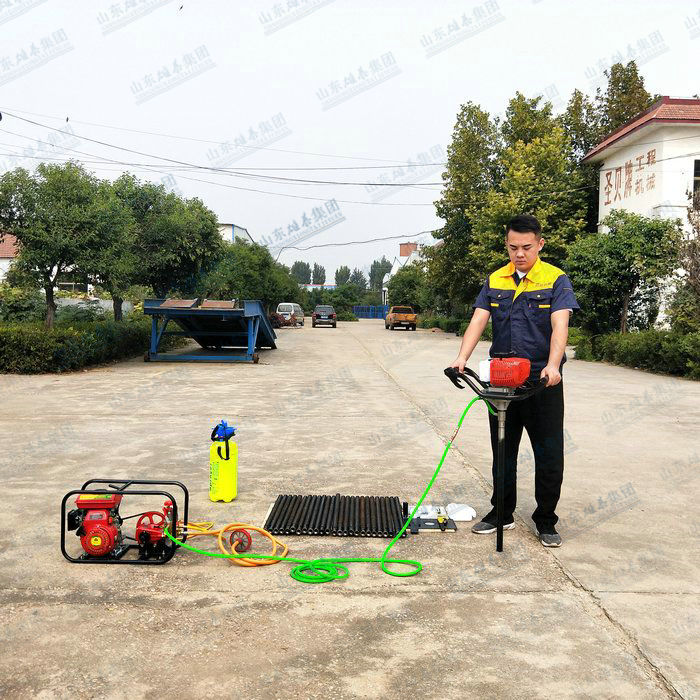

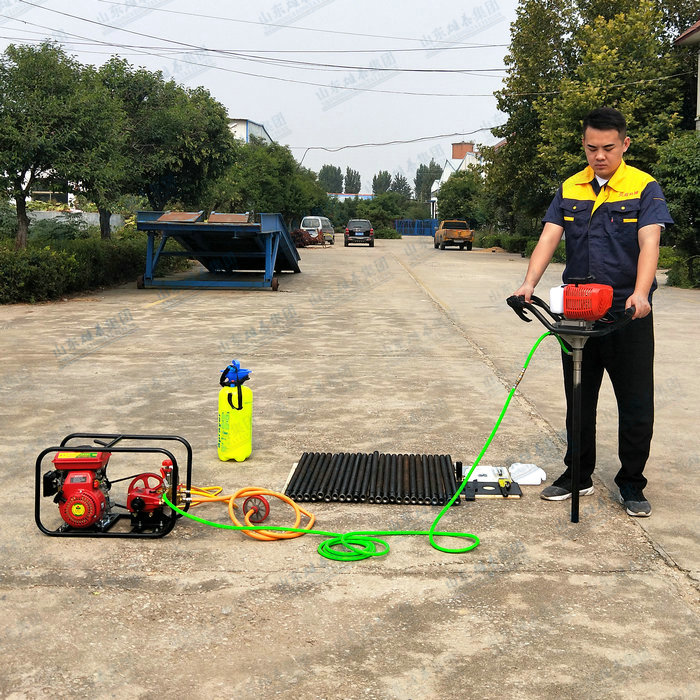

The BZ-30B single-person backpack core drill, manufactured by Shandong Xiongtai Machinery, is a lightweight rig for shallow core sampling. Its maximum drilling depth reaches 30 meters. This compact portable core drill is tailor-made for mineral surveys, oilfield exploration, geological research and prospecting operations.
II. Product Advantages

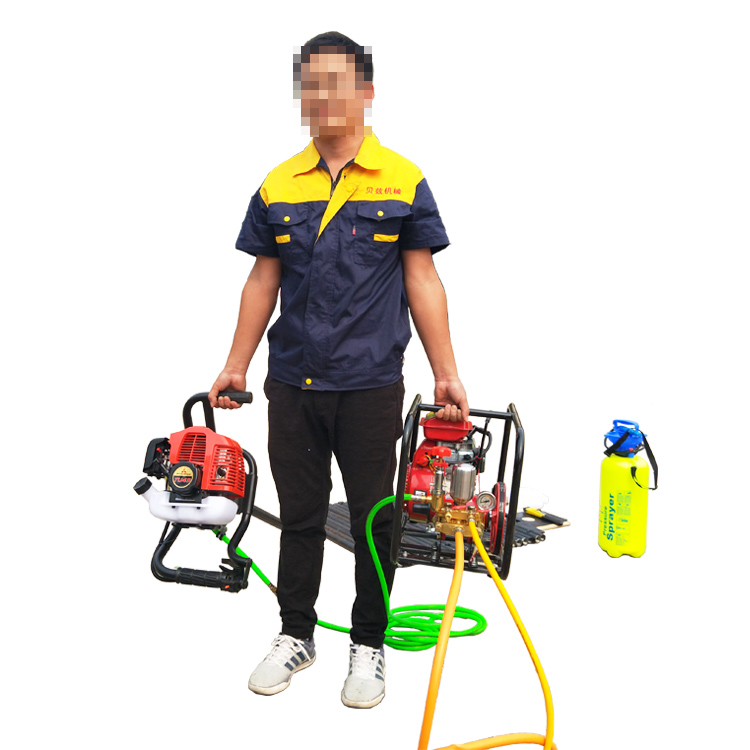

Easy to carry: After packing the whole drill and supporting accessories into the backpack, the total weight of a standard portable drill set with attachments is less than 20 kg.All tools for drilling and rock sample collection fit inside the backpack, light enough for an average adult man or woman to transport effortlessly. The backpack also leaves ample space for spare fuel, drinking water and personal belongings.Flexible operation: The whole unit can be assembled or extended simply by twisting, pushing and pulling with no extra tools required, enabling quick disassembly and installation. Equipped with a core extractor, it retrieves intact core samples and rock fragments smoothly.Fast drilling speed: This drill delivers high efficiency when penetrating rock strata. Specially formulated diamond bits feature sharp cutting edges to save time and labor.
III. Product Parameters
| BZ-30B Single-person Backpack Drilling Rig | ||
| Drilling Diameter (mm) | 32-108 | |
| Drilling Depth (m) | 30 | |
| Drill Rod Diameter (mm) | 26-102 | |
| Gasoline Engine | Displacement (cc) | 45 |
| Horsepower (HP) | 7.33 | |
| Rig Weight (kg) | 20 | |

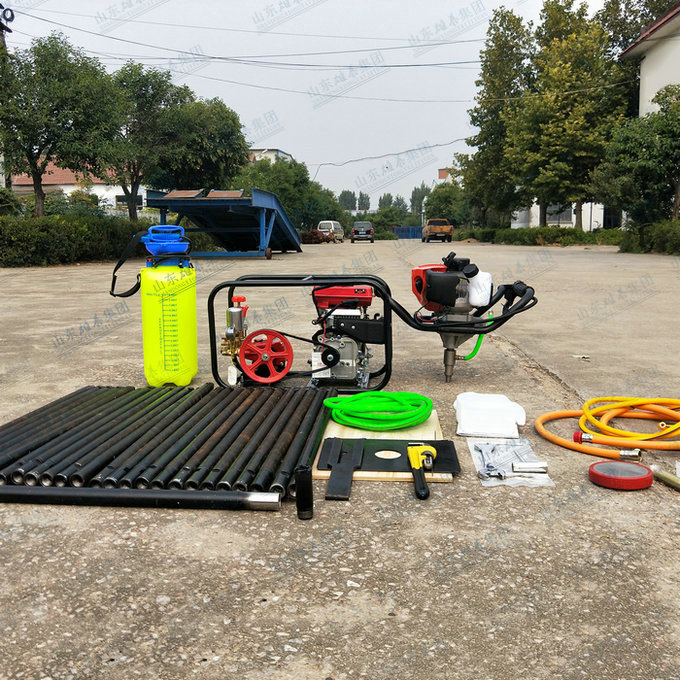

IV. Standard Accessory List
| Serial No. | Product Name | Product Type | Specification | Quantity | Remarks |
|---|---|---|---|---|---|
| — | BZ-30B | — | — | 1 Set | Full Set of Equipment |
| 1 | Power System | Gasoline-oil Mixed Power | TU43 | 1 Piece | Original Imported from Japan |
| 2 | Drill Rod | — | 32mm*70cm | 28 Pieces | Total 20m, Carburized Steel Material |
| 3 | Core Barrel | — | 32mm*70cm | 2 Pieces | Special Alloy Material |
| 4 | Adapter | — | 32mm*X | 2 Pieces | Domestic Reinforced Material |
| 5 | Drill Bit | Diamond | 32mm | 2 Pieces | Domestic Reinforced Material |
| 6 | Drill Bit | PDC | 32mm | 2 Pieces | Domestic Reinforced Material |
| 7 | Drill Bit | Alloy | 32mm | 2 Pieces | Domestic Reinforced Material |
| 8 | Pressure Tank | — | — | 1 Piece | For Down-the-hole Pressure Water Supply |
| 9 | Mixing Ratio Tank | — | — | 1 Piece | For Mixed Liquid Ratio Preparation |
| 10 | Mud Pump | High Pressure Pump | 4.2 | 1 Piece | Equipped with Full Set of Connection Devices |
| 11 | Tools | — | — | 1 Set | All Tools for Operation and Daily Maintenance |
| 12 | Wearing Parts | — | — | 1 Set | Wearing Parts for Power, Water Supply and Other Systems |
