I. Product Features

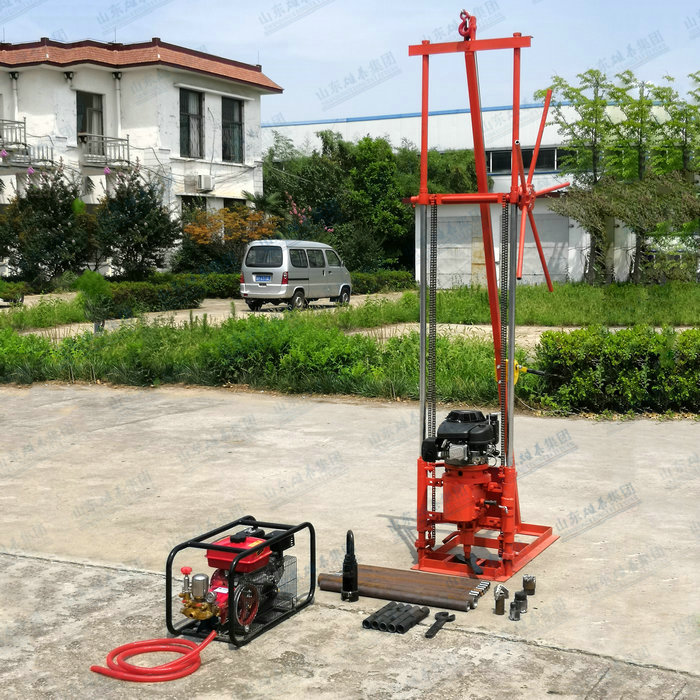

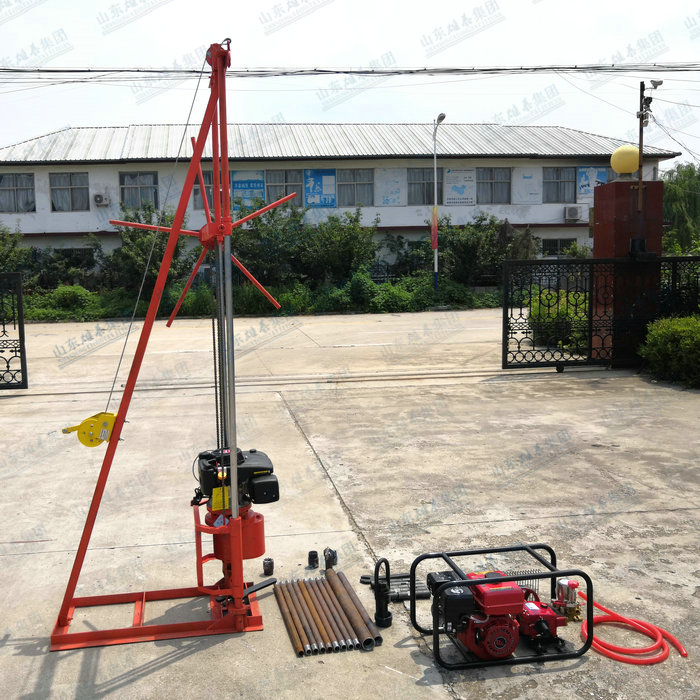

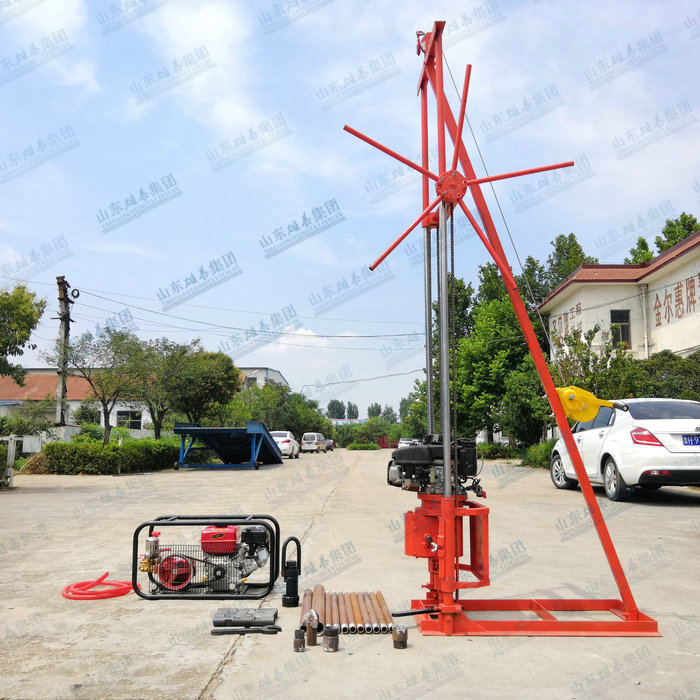

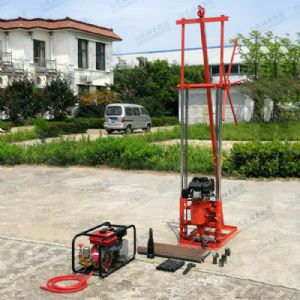

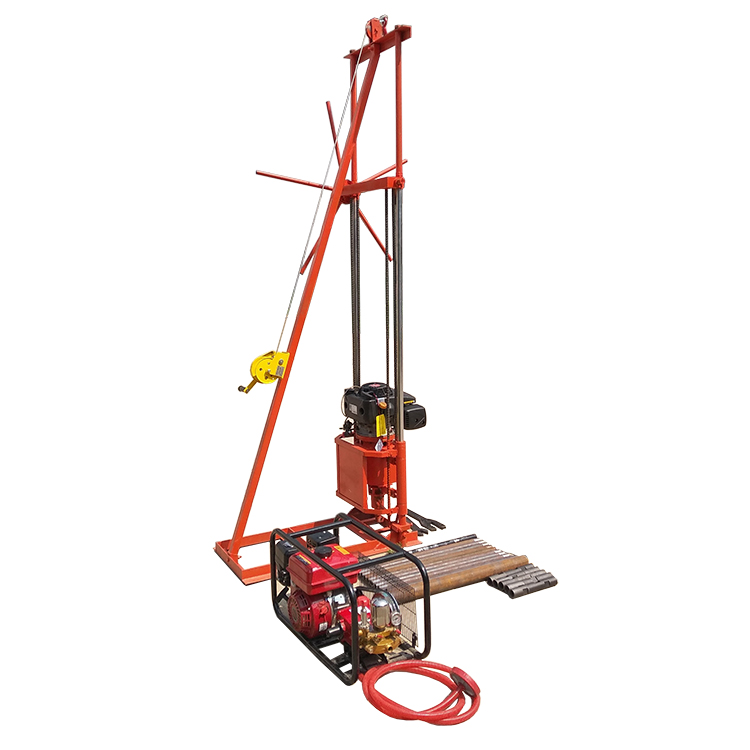

Model BZ-30S gasoline portable drill is a well-developed mini engineering rig independently researched and developed by our company over a long period. It delivers high torque, lighter weight and versatile functions.
It is widely used for mountain field prospecting, geological investigation, drilling of geophysical holes, grouting holes, blast holes and inspection holes in industrial & civil construction, bridge, railway, highway and other sectors.
II. Product Advantages
The main frame is constructed from aluminum alloy to cut down total weight significantly. It features compact layout, small overall size and light body weight. Fitted with two-speed shifting system, the unit is easy to transport and equipped with premium fittings.
III. Drill Specifications
Powered by a 224cc gasoline engine, the BZ-30S portable drill boasts strong horsepower and abundant power output. Drilling diameters cover 45mm to 108mm. Manual pressure feeding ensures fast penetration rate. Its compact outer dimensions perfectly fit your on-site operation demands.
| BZ-30S Lightweight Sampling Drill | ||
| Drilling Diameter（mm） | 45-108 | |
| Drilling Depth(m） | 30 | |
| Drill Rod Diameter(mm) | 32 | |
| Gasoline Engine | Displacement（cc） | 224 |
| Horsepower（HP） | 6（4.5KW） | |
| Drill Weight（KG） | 101 | |
IV. Complete Configuration of Model BZ-30S Gasoline Portable Sampling Drill
| Name | Model | Unit | Quantity |
|---|---|---|---|
| Gasoline Engine Sampling Drilling Rig | BZ-30S | Set | 1 |
| Drill Rod | Φ32*750 | Piece | 20 |
| Coupling Sleeve | φ40 | Pair | 20 |
| Core Adapter Head | Φ45 Male / 38 Female | Piece | 2 |
| Core Barrel | φ45, 0.75m per piece | Piece | 1 |
| Alloy Drill Bit | Φ46 | Piece | 1 |
| Core Adapter Head | Φ60 Male / 38 Female | Piece | 1 |
| Core Barrel | φ60, 0.75m per piece | Piece | 1 |
| Alloy Drill Bit | Φ60 | Piece | 1 |
| Soil Cleaning Bit | Φ73 | Piece | 1 |
| Manual Winch | — | Piece | 1 |
| Steel Wire Rope | — | Set | 1 |
| Pulley | — | Piece | 1 |
| Support Fork | — | Piece | 1 |
| Wrench Fork | — | Piece | 1 |
| Steering Assembly | — | Set | 1 |
Please specify separately if a high-pressure pump and high-pressure water hose are required.
