Product Features

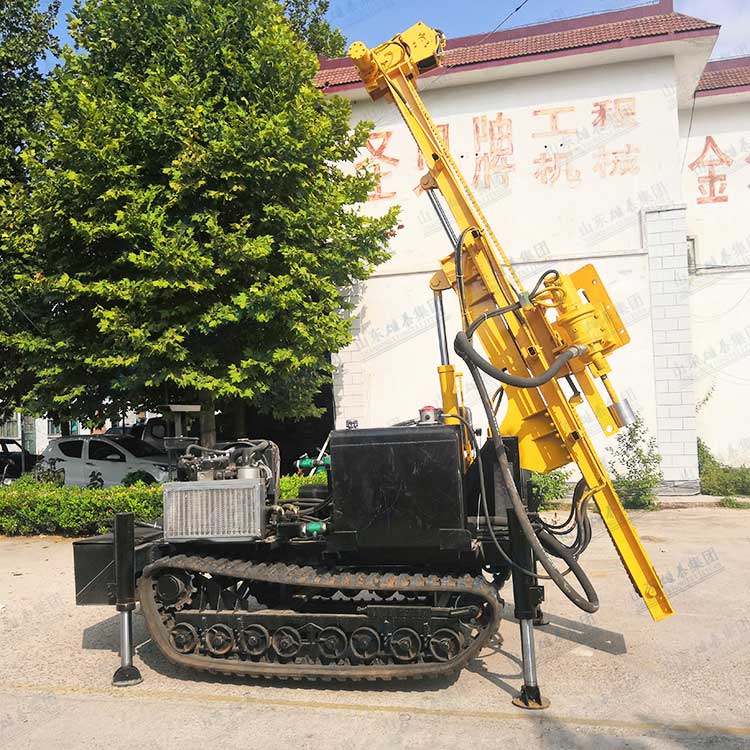

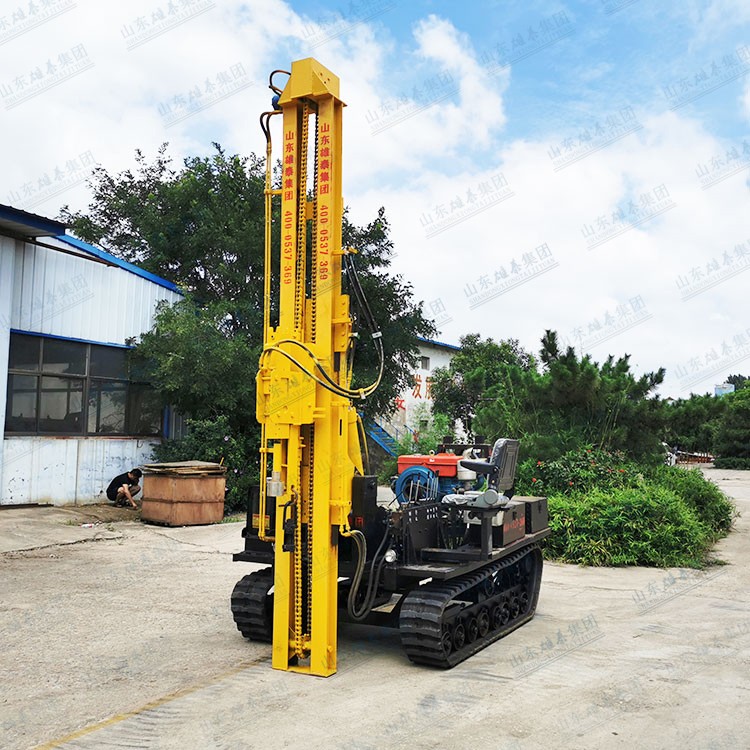

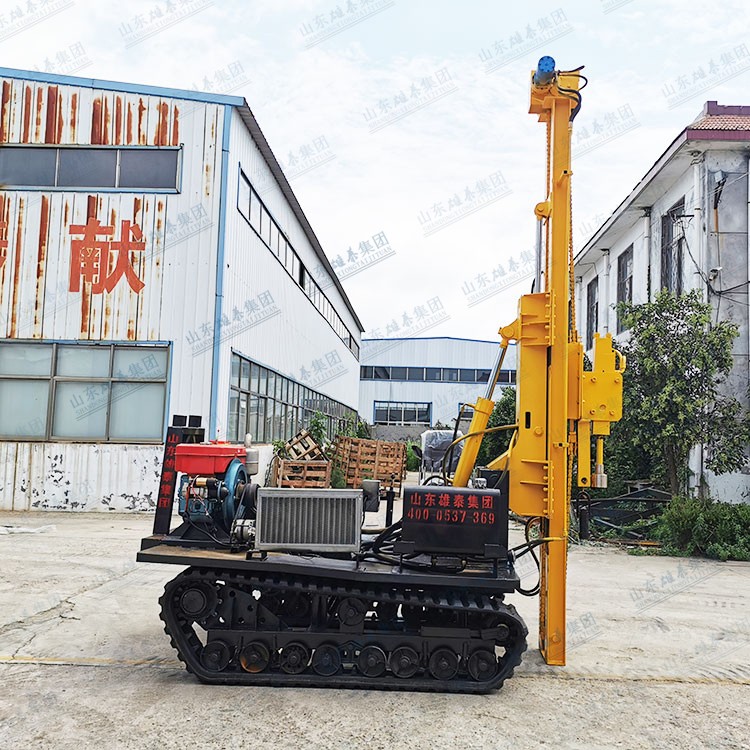

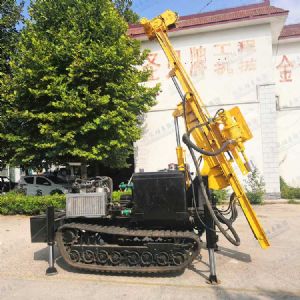

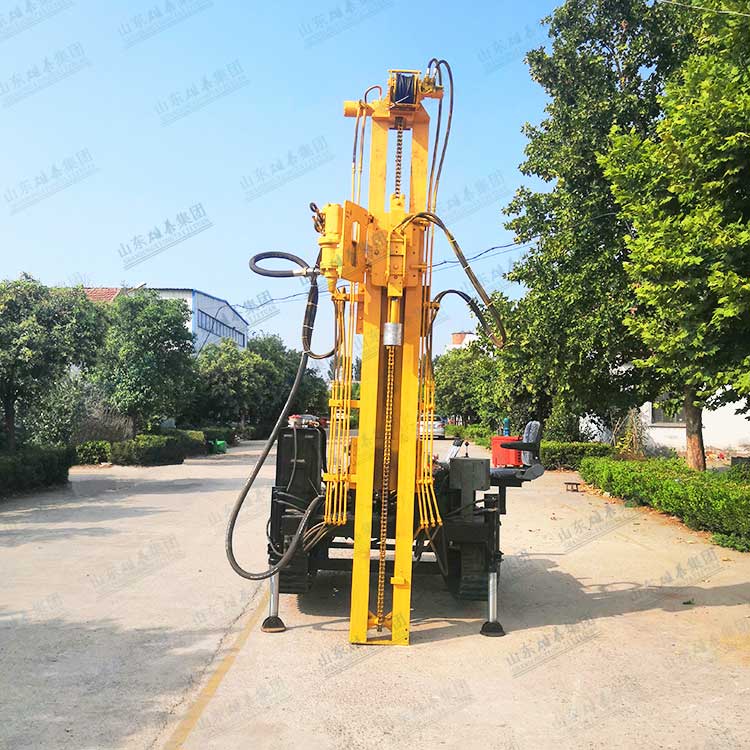

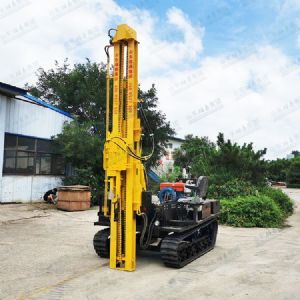

·Manufactured by Shandong Xiongtai Machinery, Model BZ-200 drilling rig is upgraded from conventional rigs with an added sliding track for rig relocation, enabling rapid drill string replacement to boost working efficiency and cut labor intensity.This high-speed drill rig is applicable for general prospecting, geophysical exploration, road & construction site investigation, blasthole drilling and other drilling works.
Users may select carbide, diamond or PDC bits based on varying ground formations to drill sandy clay and rock formations ranging from Grade 2 to Grade 9.
Product Advantages
| Overall Machine Parameters | |
| Drilling Depth | 200m |
| Max. Opening Hole Diameter | Φ75-Φ325mm |
| Final Hole Diameter | 75mm |
| Drive Drill Rod | 53/59*4200mm |
| Drill Rod Diameter | Φ42-Φ60mm |
| Drilling Inclination Angle | 90°～75° |
| Matching Power (Diesel Engine) | 15kW/2200r/min |
| Net Weight / Overall Dimension | 1150kg/2700*950*1770mm |
| Rotary Head | |
| Spindle Rotation Speed | 64、128、287、557r/min |
| Spindle Stroke | 450mm |
| Winch | |
| Single Rope Lifting Force | 24kN |
| Single Rope Lifting Speed | 0.12、0.22、0.49、0.95m/s |
| Drum Diameter | Φ140mm |
| Steel Wire Rope Diameter | Φ13mm |
| Steel Wire Rope Capacity | 35m |
| Drill Mast | |
| Rated Load | 5t |
| Effective Height | 6m |
| Leg Specification | Φ89mm |
| Mud Pump | |
| Model | BW145 |
| Flow Rate | 145L/min |
| Max. Working Pressure | 2MPa |
| Reciprocating Frequency | 93 strokes/min |
| Suction Hose Diameter | Φ51mm*4.5m |
| High-pressure Discharge Hose Diameter | Φ32mm*6m |
BZ-200
