1. Product Introduction
The SJZ-500F tractor-mounted water well drilling machine is widely applied for household well drilling, factory well construction, domestic water supply, farmland irrigation wells, water air conditioner installation, solar water heater matching and construction site piling. This water well drilling rig consumes less water during operation, effectively prevents borehole collapse, and enables easy location of water-bearing strata.
2. Product Parameters
| Model | SJZ-500F |
| Power Supply | 3-phase 380V motor, adjustable speed, forward and reverse rotation available |
| Motor Power | 7.5kW per motor, 2 motors in total |
| Drilling Diameter | 200-450mm |
| Drill Rod Diameter | 108mm and other sizes, multiple lengths optional |
| Drill Bit Specification | Alloy and diamond drill bits of various diameters are optional |
| Drilling Depth | 80m |
| Machine Weight | 600kg |
| Applicable Strata | Clay layer, quicksand layer, minor rock layer, pebbles, etc. |

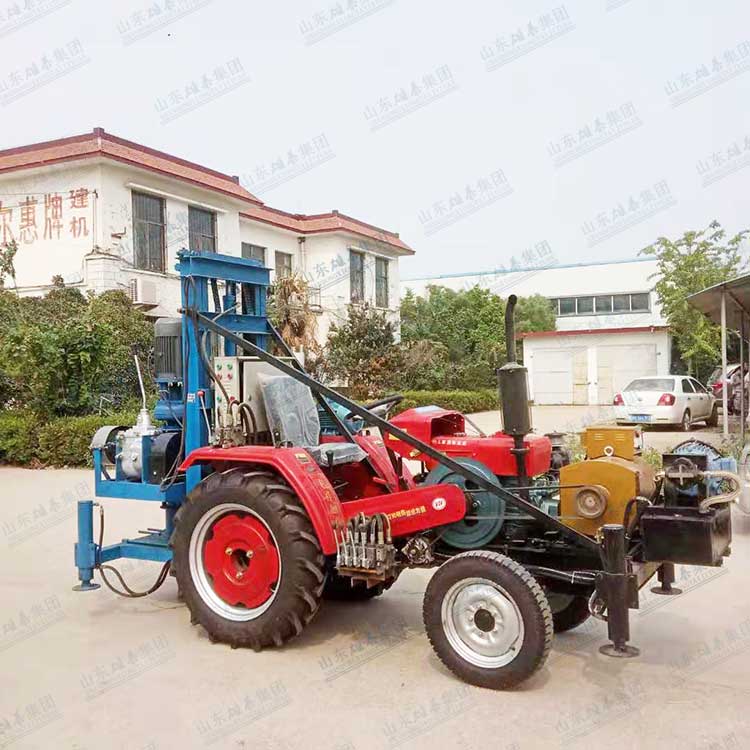

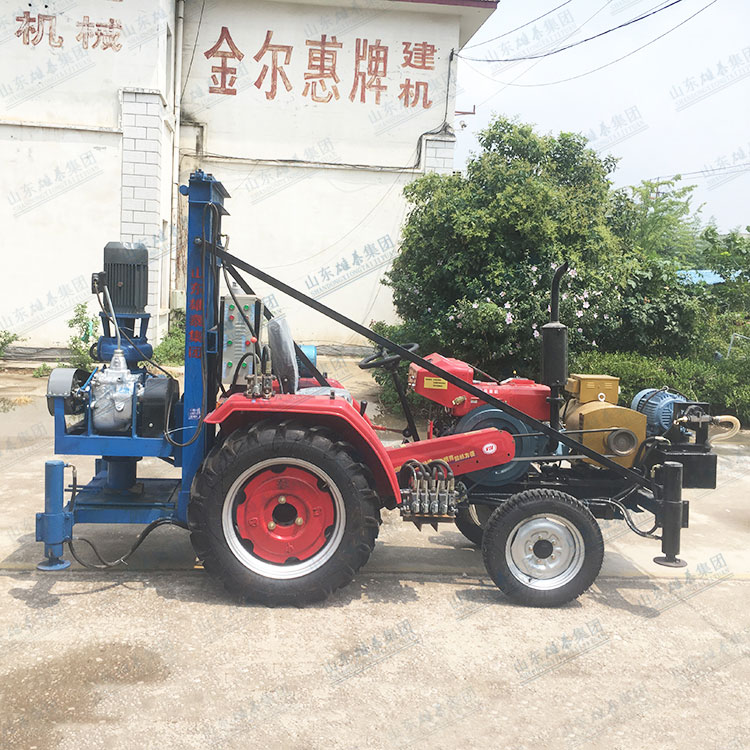

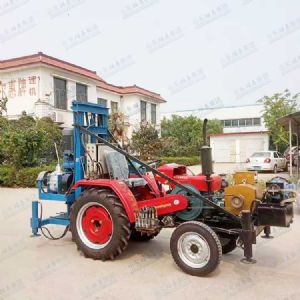

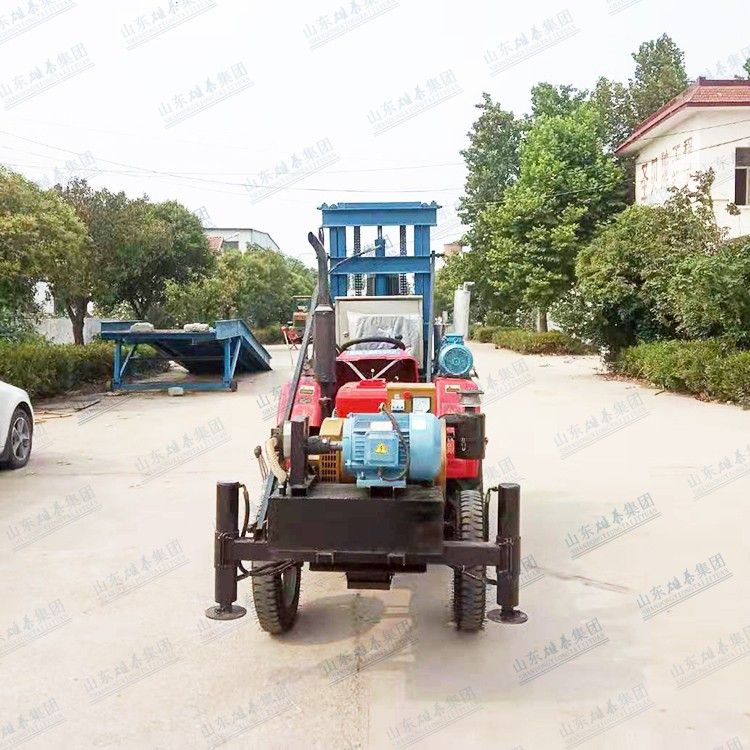

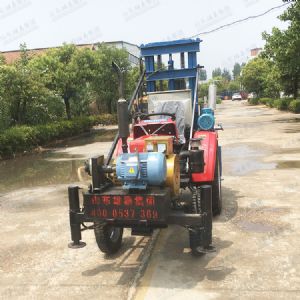

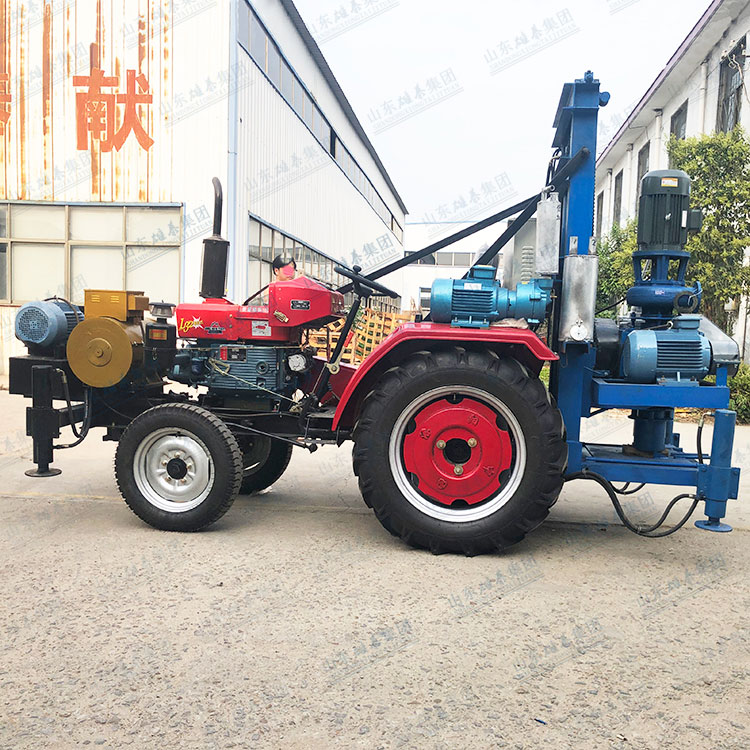

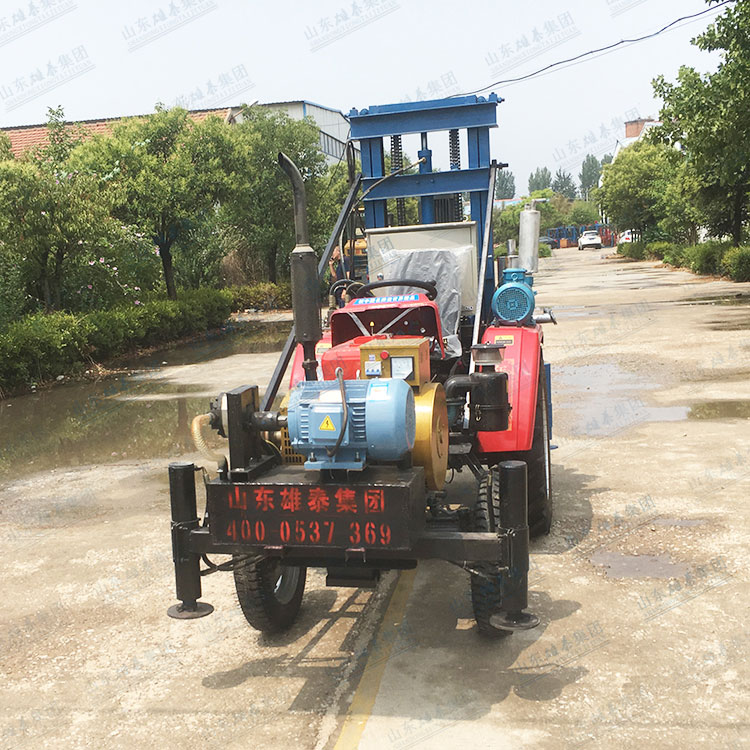

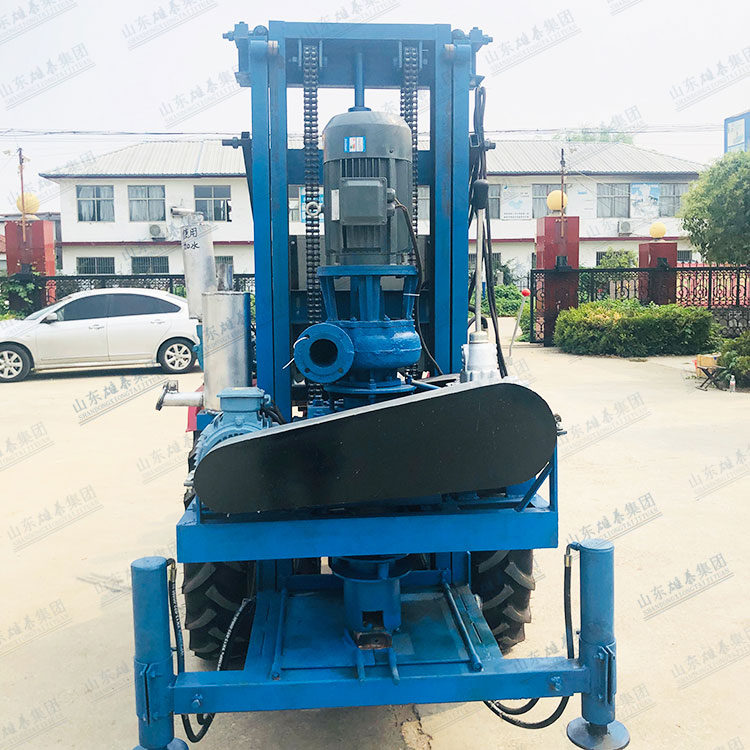

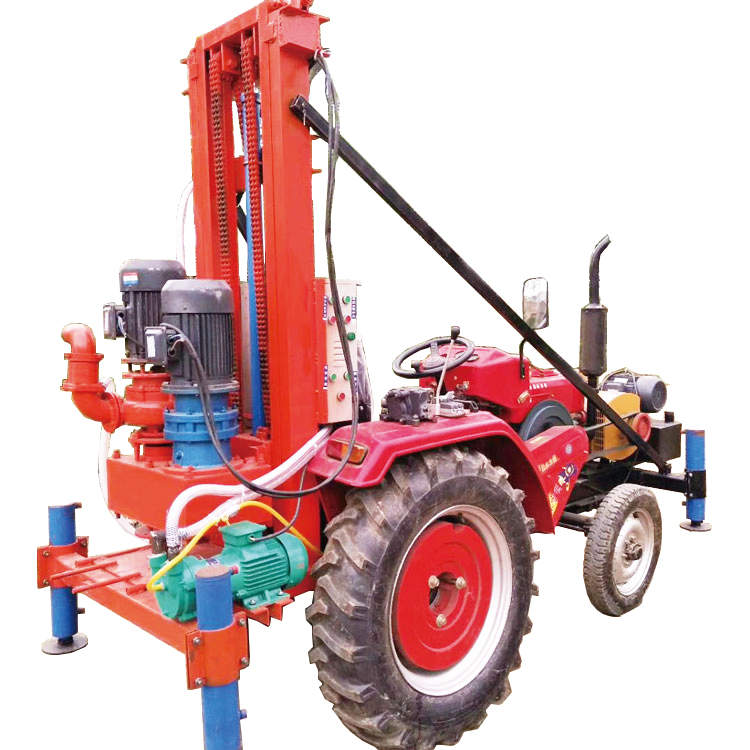

SJZ-500F Tractor Reverse Circulation Rig
