I. Product Features

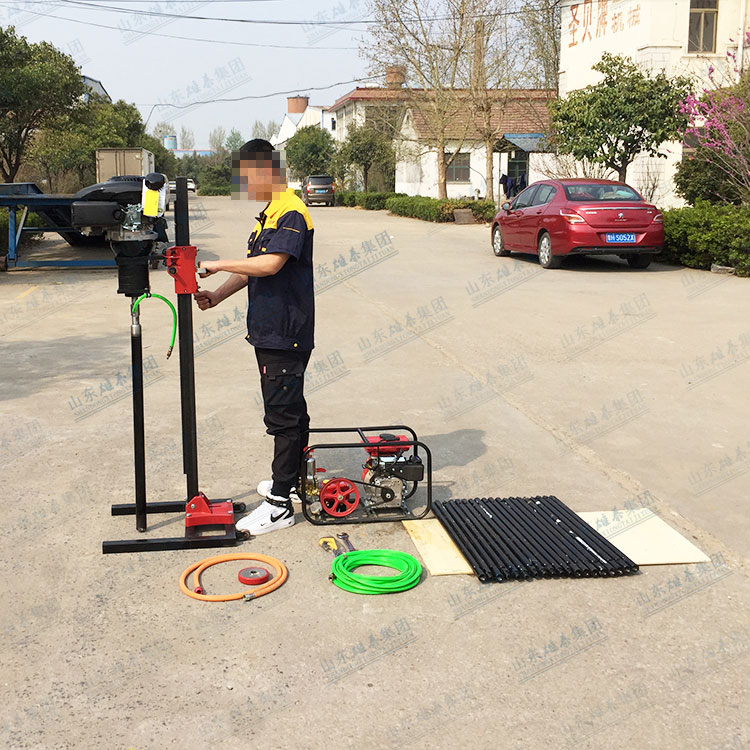

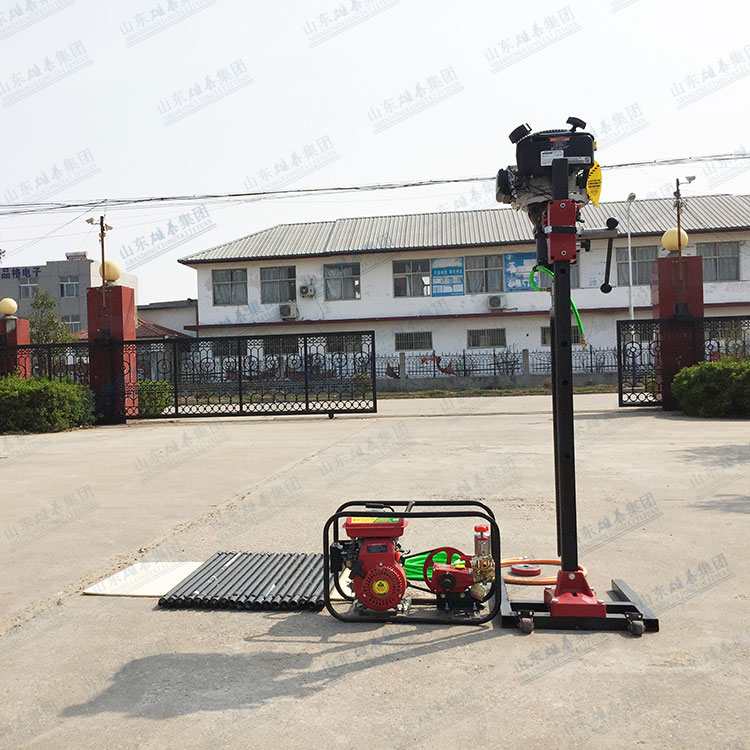

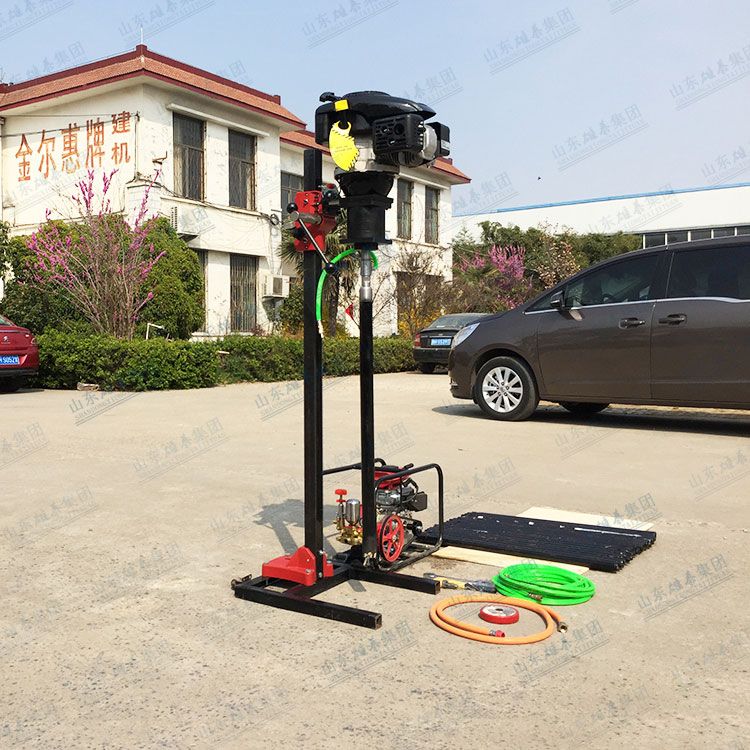

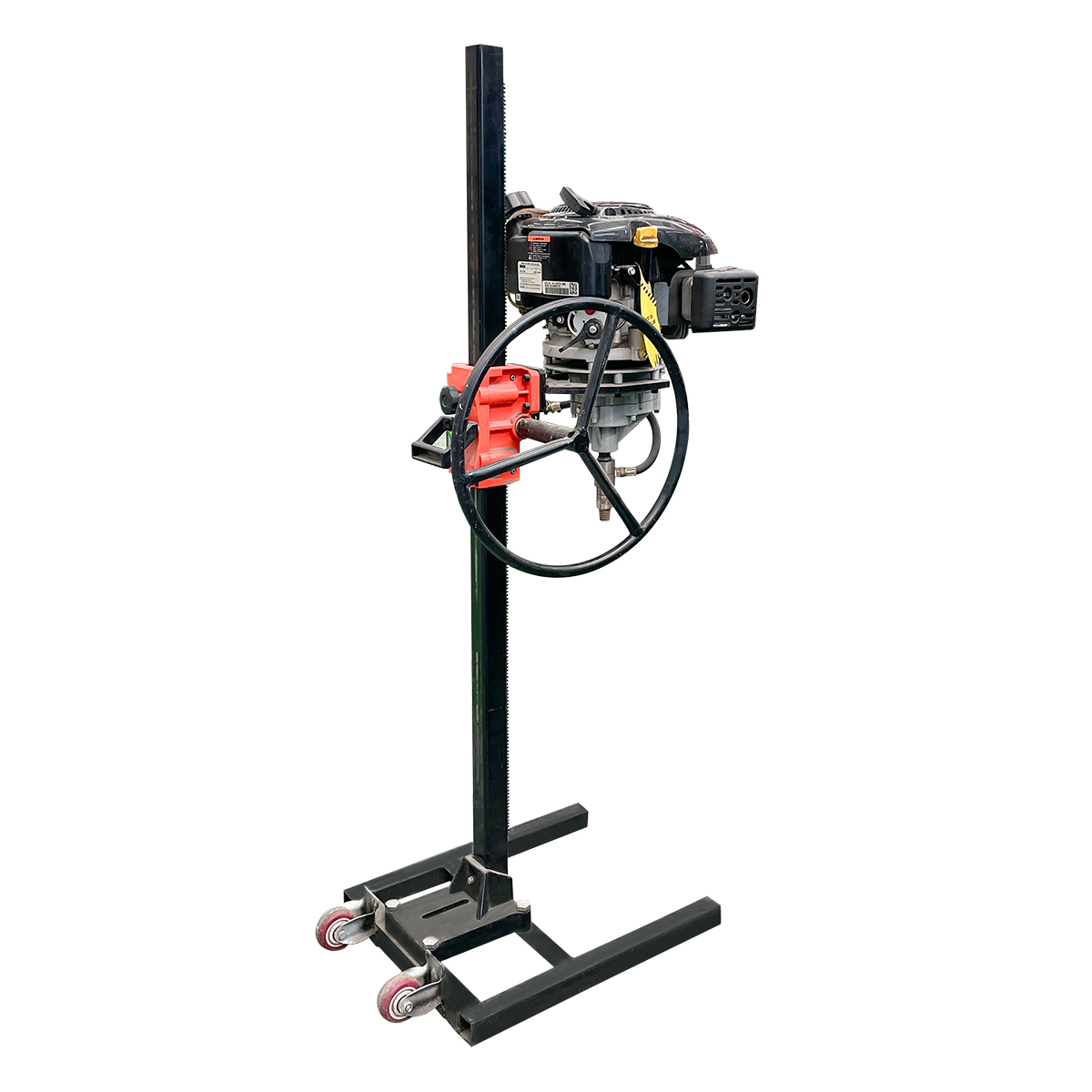

The BZ-30L vertical backpack drill is a lightweight core drill that can be disassembled for backpack transport. It is widely used in geological exploration, geochemical shallow sampling, ore vein inspection, geoscience research, engineering survey, oilfield investigation, water conservancy engineering survey, highway engineering survey, tunnel lining inspection, inverted arch detection and other tasks. This compact portable core drill equipped with a Kohler engine is tailor-made for mineral surveys, oilfield prospecting, geological research and field prospectors.
Key advantages of the BZ-30L vertical backpack core drill:
Compact and detachable structure, small size and light weight for easy backpack carrying; powered by an imported brand gasoline engine with strong horsepower; fitted with a drill stand to ensure safer and more convenient field operation.
II. Product Parameters
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Power Brand | Kohler | Gear Ratio | 7:1 |
| Power Output | 7.75 HP | Transmission Mode | Continuously Variable Transmission (CVT) |
| Fuel Tank Capacity | 1400ml | Drill Rod Size | 32*800mm |
| Transmission Mode | Gear Drive | Drilling Depth | 30m |
| Starting Mode | Pull Rope Start | Drilling Diameter | 32~108mm |
| Clutch Mode | Automatic Clutch | Main Unit Net Weight | 67kg |
| Coring Mode | Rotary Type | Main Unit Dimension | 550*450*420mm |
| Final Hole Rotation Speed | 540r/min | — | — |

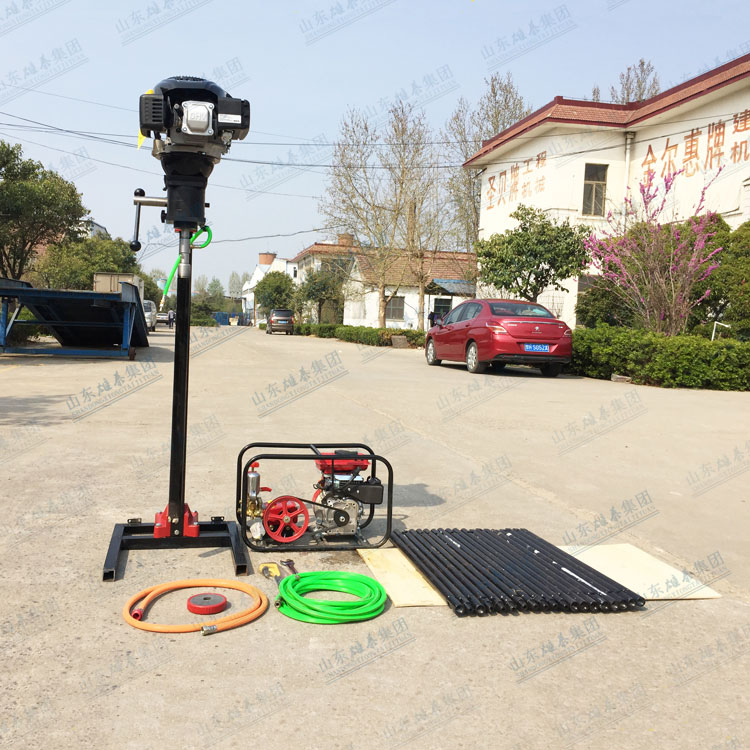

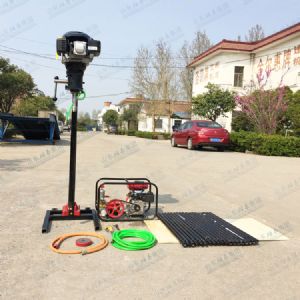

III. Standard Accessory List for BZ-30L Vertical Backpack Core Drill
| Item Name | Specification | Unit | Quantity |
|---|---|---|---|
| Drilling Rig (with Drill Mast) | BZ-30L | Set | 1 |
| Drill Rod (with Male & Female Coupling) | Φ32*800 | Piece | 28 |
| Core Adapter Head | Φ60 | Piece | 1 |
| Core Barrel | Φ60*600 | Piece | 1 |
| Alloy Drill Bit | Φ60 | Piece | 1 |
| Diamond Drill Bit | Φ60 | Piece | 1 |
| Gasoline High Pressure Pump | — | Set | 1 |
| Water Suction Hose | — | Piece | 1 |
| Water Suction Filter | — | Piece | 1 |
| Water Return Hose | — | Piece | 1 |
| Water Supply Hose | — | Piece | 1 |
| Pipe Wrench | — | Piece | 1 |
| Support Fork | — | Piece | 1 |
| Wrench | — | Piece | 1 |
| Wellhead Plate | — | Piece | 1 |
| Spark Plug | — | Piece | 1 |
| Pipe Gasket | — | Set | 1 |
| Water Seal | — | Set | 1 |
