Product Features

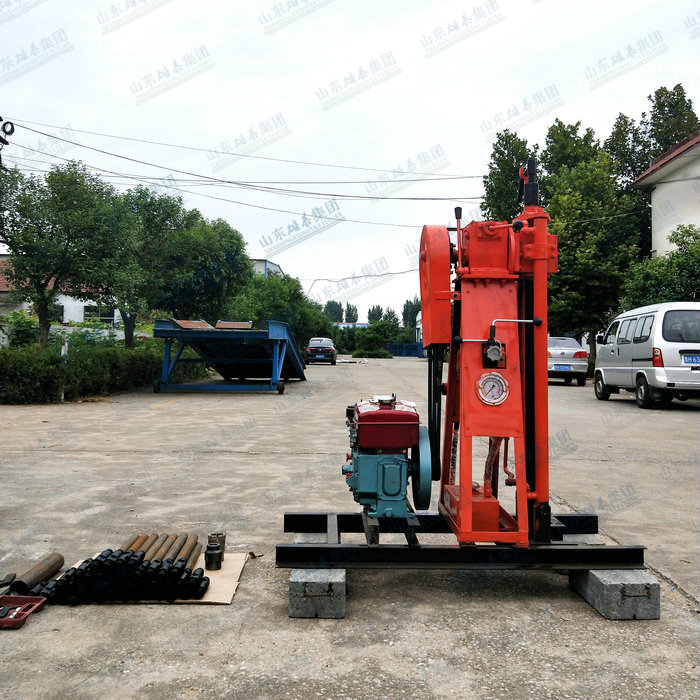

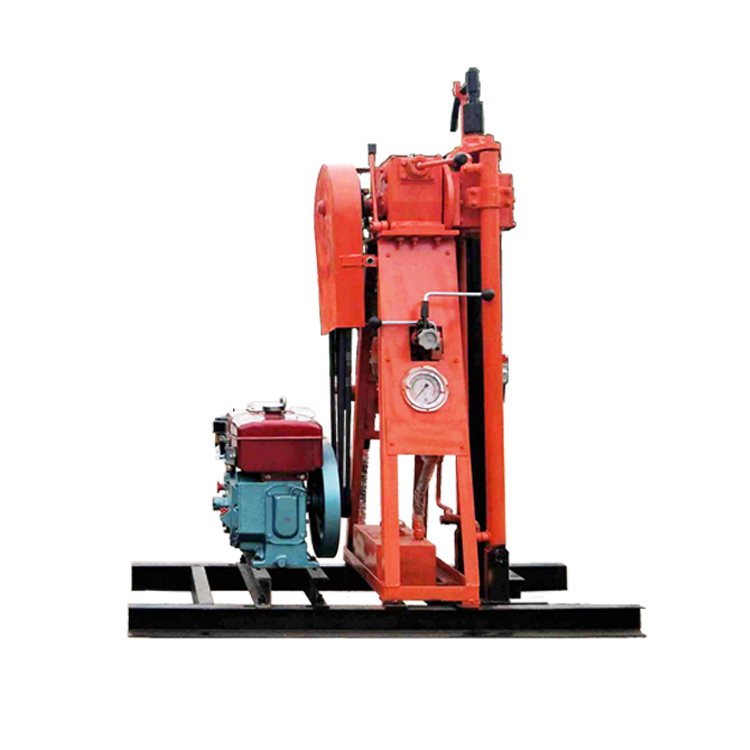

·The vertical Model 50 drill rig is a three-speed (high/medium/low) drilling machine equipped with hydraulic feed system. Compared with similar products, it features lightweight body, simple structure, fast drilling rate and large-diameter core samples.
It is especially suitable for core drilling in harsh terrains such as mountains, hills and river valleys. Widely applied in engineering geological investigation for railways, hydropower projects, highways, bridges and dam foundations, geological core drilling and geophysical exploration. It can also drill small grouting holes, blast holes and shallow water wells.
BZ-50——Parameters| Model | Vertical50 |
| Drilling Depth | 50 m |
| Borehole Diameter | 73-108mm |

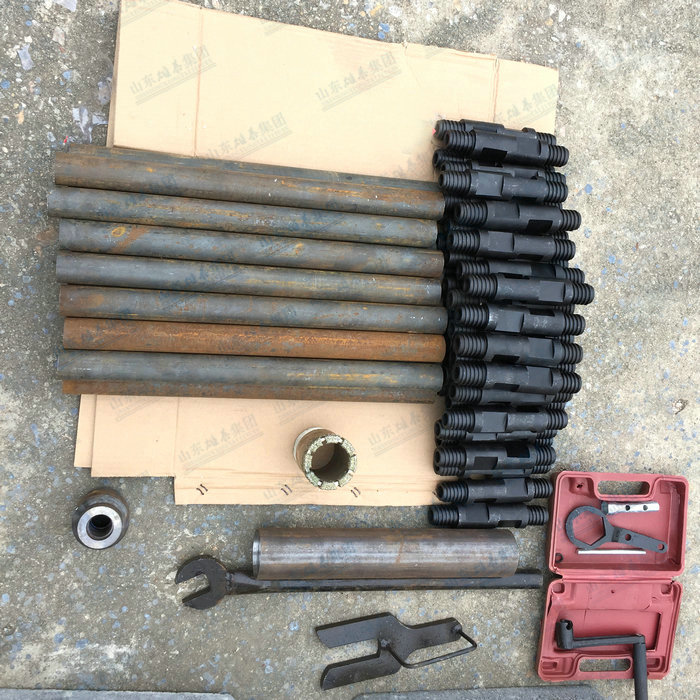

| Drill Rod Diameter | 42mm |
| Drilling Inclination | 90° |
| Total Weight | 300kg |
| Overall Dimension | 1180*680*1600mm |
| Matched Power | 8hp(Single-cylinder Water-cooled Diesel Engine) |
| Spindle | |
| Spindle Rotation Speed | 142 285 570r/min |
| Spindle Feed Stroke | 1000mm |
| Lifting Capacity | 300kg |
| Feed Pressure | 200kg |
