Product Features:

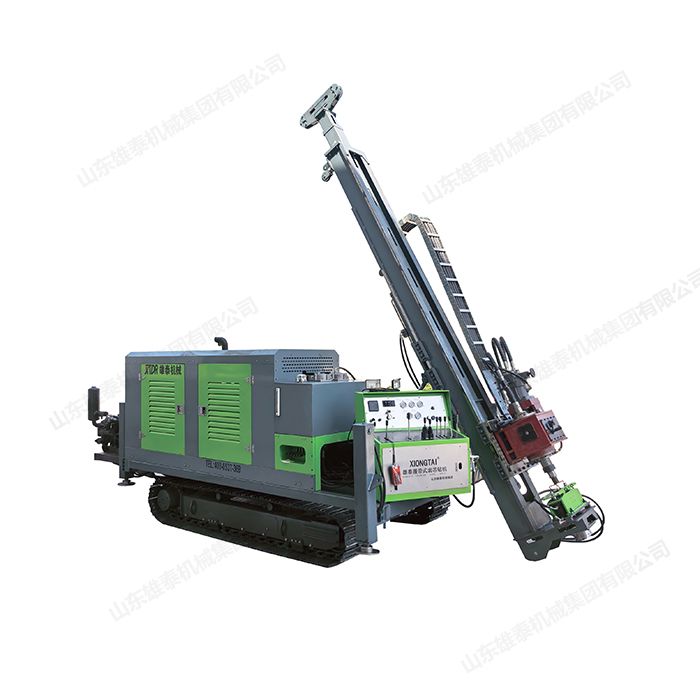

　● This drill rig is equipped with a Weichai 105kW six-cylinder diesel engine, featuring abundant power, stable operation and high reliability. Its core structure integrates power, hydraulic and drilling systems into an all-in-one unit, and full-hydraulic drive enables core drilling construction. Remote-controlled crawler traveling allows rapid site relocation and transportation, applicable to various fields such as geological exploration and engineering geological investigation.

Product Advantages：

　● It is fitted with a piston motor matched with a three-speed gearbox; both rotating speed and torque are adjustable according to formation conditions to accommodate drilling angles ranging from 0° to 90°.

   ● The hydraulic system is fitted with an accidental touch prevention protection system. The V-type self-weight gripper cannot release drill rods unless fully locked in clamping position to avoid misoperation. Featuring constant pressurization and anti-drill runaway functions, the gripper prevents drill string dropping in case of unexpected rig shutdown.

   ● The operating levers are compactly centralized on the console. Featuring high automation, the rig reduces manual intervention and improves drilling depth per unit time.

   ● All key movements including drill string rotation, feed, lifting and rod unloading are hydraulically controlled. Drilling parameters can be adjusted in line with diverse ground formations to optimize core recovery rate.

XT-1200LSpecifications：
