Product Features

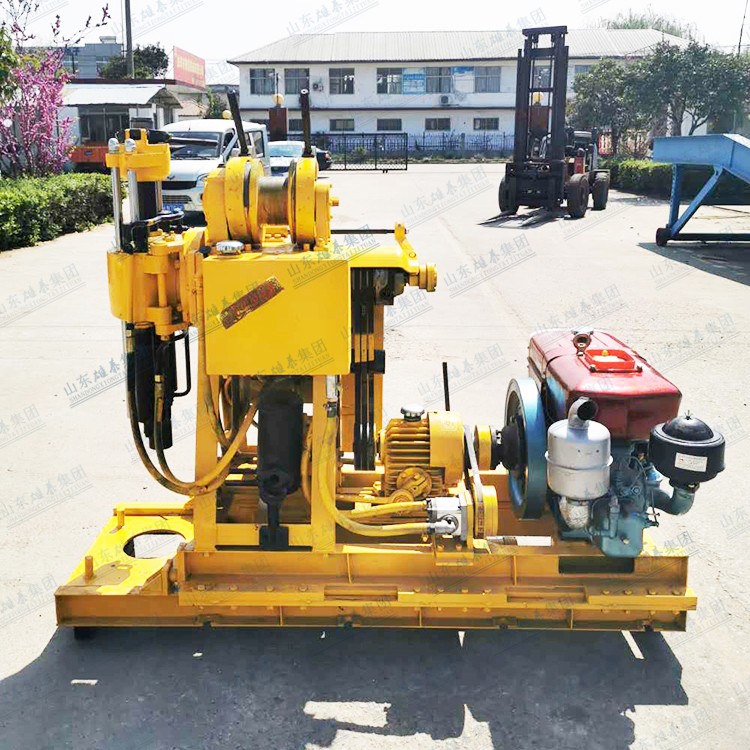

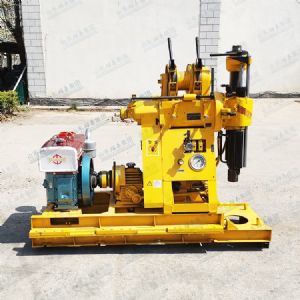

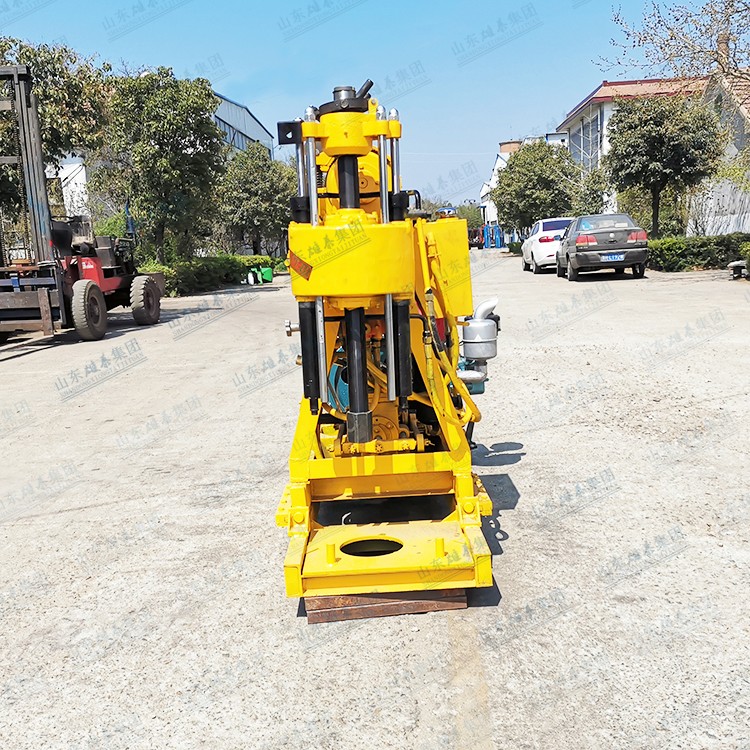

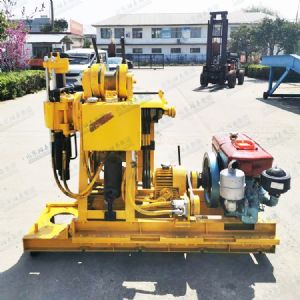

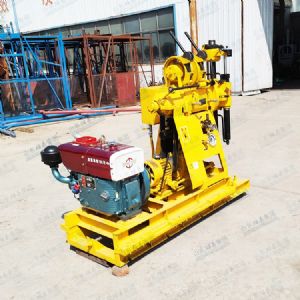

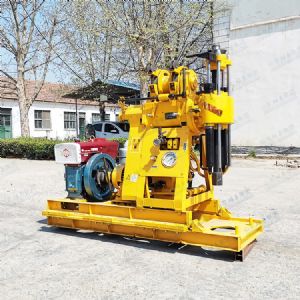

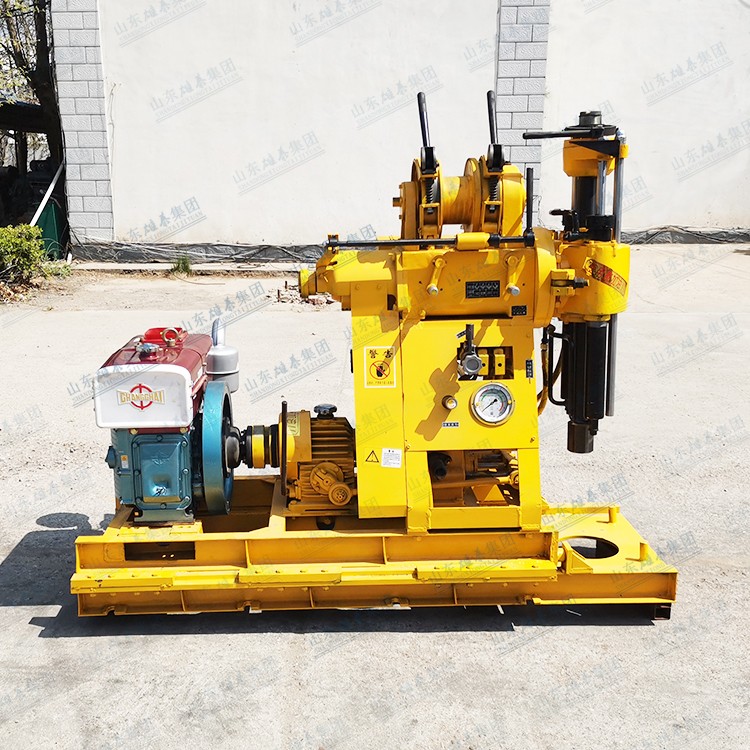

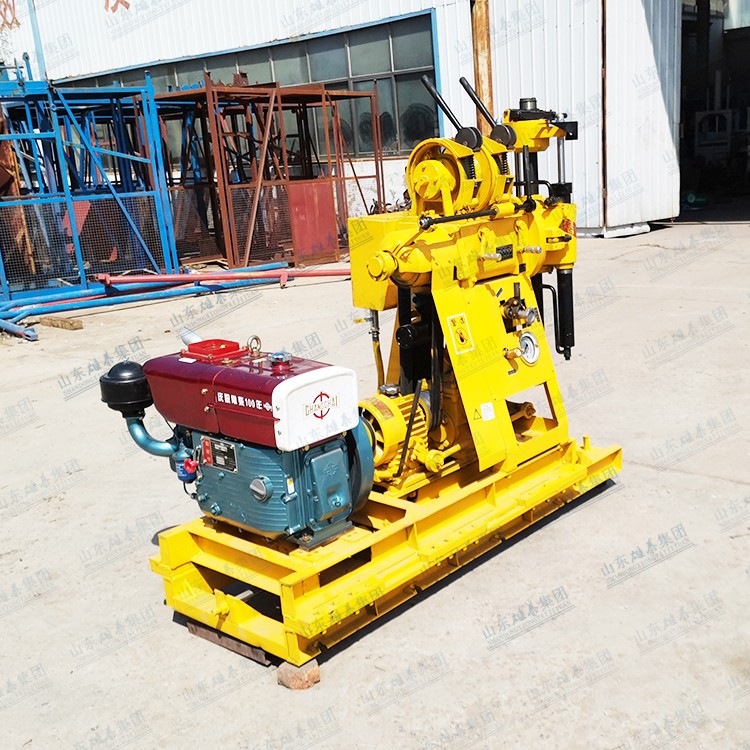

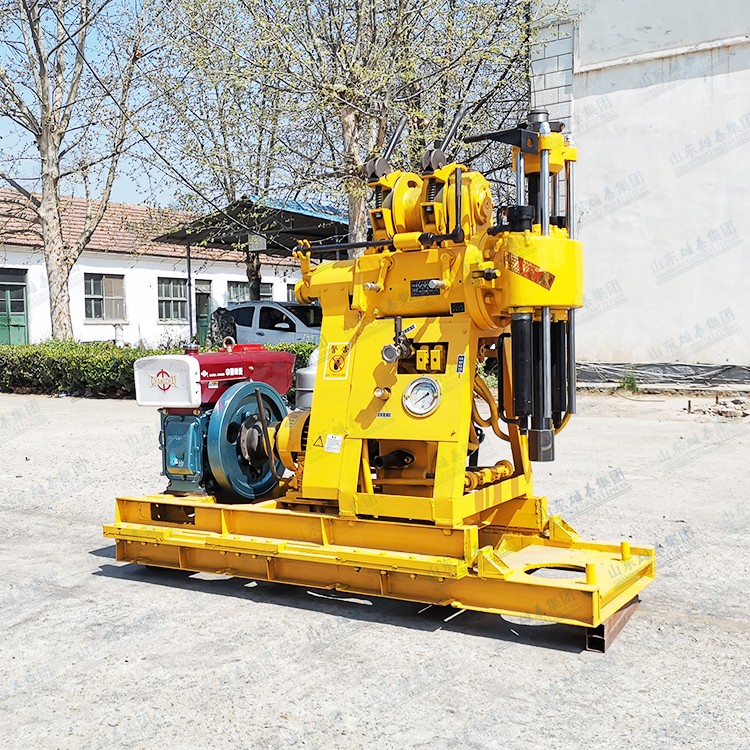

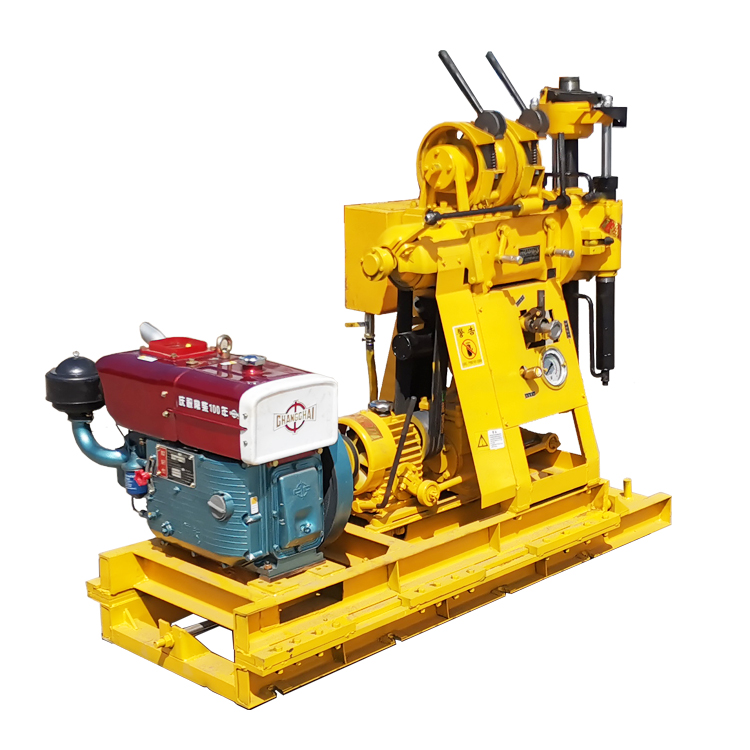

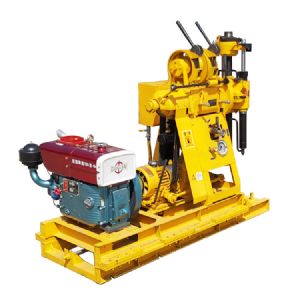

Made by Shandong Xiongtai, BZ-100 100m drill measures 1640×1030×1440mm(L×W×H), ideal for geological reconnaissance, geophysical exploration, infrastructure survey and blast hole drilling.
Product Advantages
1.Equipped with automatic hydraulic feed mechanism to improve drilling efficiency and reduce operators' physical labor.
2.Ball-type clamping structure replaces traditional chuck to realize rod tripping without shutdown for easy, safe and reliable operation.
3.Fitted with bottom-hole pressure gauge to monitor downhole working conditions conveniently.
4.Centralized control handles for simple operation.
5.Compact layout: drill unit, water pump and diesel engine are all mounted on one single base, requiring small floor space.
6.Lightweight and easy to disassemble for convenient transportation, suitable for construction on plains and mountainous areas.

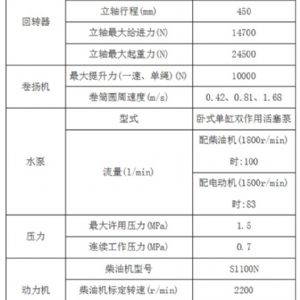

BZ-100—Technical Parameters
| Max Drilling Depth | 100 m | Diesel Engine Power | 18 HP |
| Final Hole Diameter | 75 mm | Motor Model | Y131M-4-B3 |
| Drill Rod Diameter | Φ42 / Φ50 mm | Rated Motor Speed | 1500 r/min |
| Overall Dimension | 1640×920×1240 mm | Rated Motor Power | 11 kW |
| Total Weight | 500 kg | Main Unit Dimension | 1640×1030×1440 mm |
| Diesel Engine Model | S1100N | Main Unit Weight | 400 kg |
| Rated Diesel Speed | 2200 r/min |
