Product Advantages:

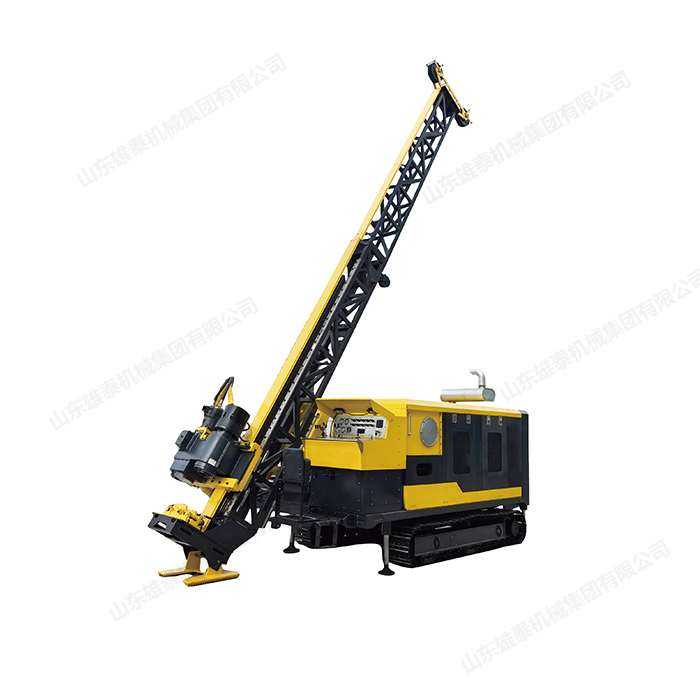

　● This drill rig is powered by a Cummins 264kW six-cylinder diesel engine, which delivers abundant power and ensures high reliability for high-altitude operation. It features an integrated design combining power, hydraulic and drilling systems. Full-hydraulic drive realizes core drilling construction. Remote-controlled crawler travel enables fast site relocation and transportation, suitable for geological exploration, engineering geological investigation and other applications.

Product Advantages：

　● Equipped with a piston motor and piston oil pump matched with a four-speed through-bore gearbox, the rig allows adjustable rotational speed and torque according to formation conditions. Its frame-type mast supports drilling angles ranging from 0° to 90°.

   ● The hydraulic system is fitted with an accidental touch prevention protection system. The V-type self-weight gripper cannot release drill rods unless fully locked in clamping position to avoid misoperation. Featuring constant pressurization and anti-drill runaway functions, the gripper prevents drill string dropping in case of unexpected rig shutdown.

   ● The operating levers are compactly centralized on the console. Featuring high automation, the rig reduces manual intervention and improves drilling depth per unit time.

   ● The main hydraulic system adopts load-sensing control valves. All core operations including drill string rotation, feed, lifting and rod unloading are hydraulically driven. Drilling parameters can be modified for different ground formations to optimize core recovery rate.

XT-2000L  Specifications：
