1、The rotational speed of the drilling rig ranges from 14 to 1030 r/min, with a maximum output torque of 9500 N·m.

2、The rig is fitted with a long-stroke speed doubling mechanism and a mechanical power head with a stroke of 3500 mm, which boosts drilling efficiency and prevents sticking and burning of drill bits.

3、A dual gear oil pump is adopted for oil supply: a single pump works during drilling, while two pumps converge for lifting and lowering drill strings. This design reduces power loss and shortens auxiliary operation time.

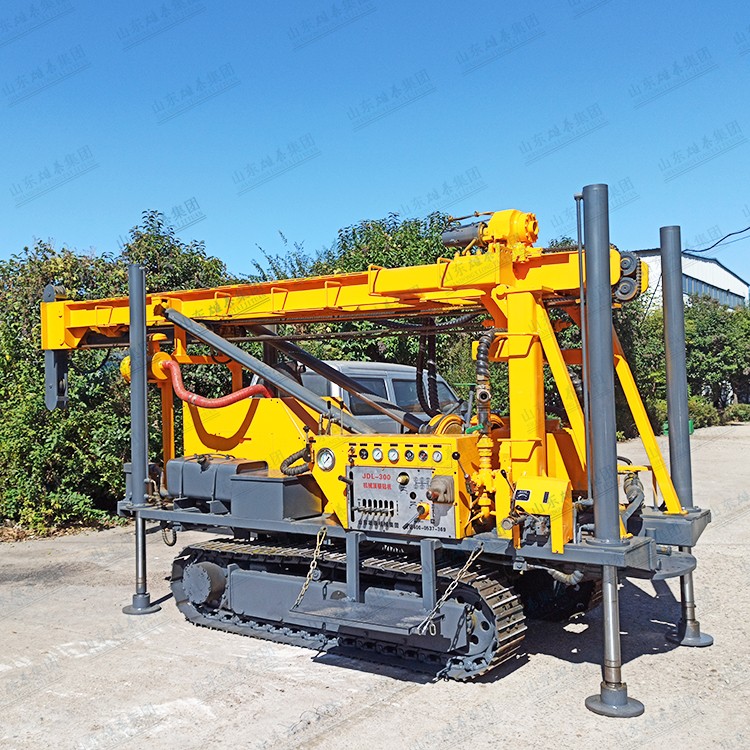

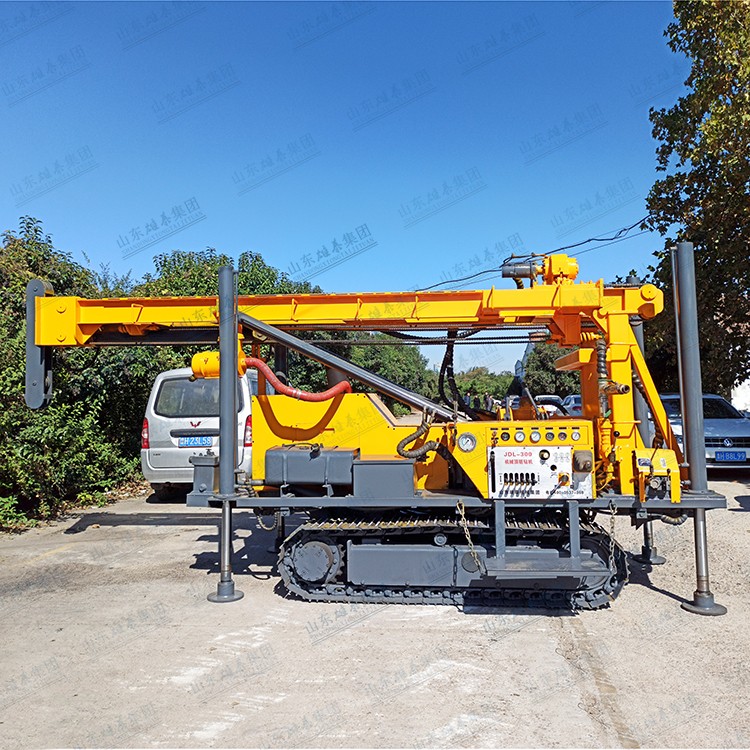

4、It is equipped with a crawler chassis; the outrigger oil cylinders have a stroke of 1.5 m to realize automatic loading, facilitating relocation and transportation.

5、Reserved functional interfaces are set in the mechanical and hydraulic systems of the rig, supporting function expansion to meet the process requirements of different customers.
