I. Product Features

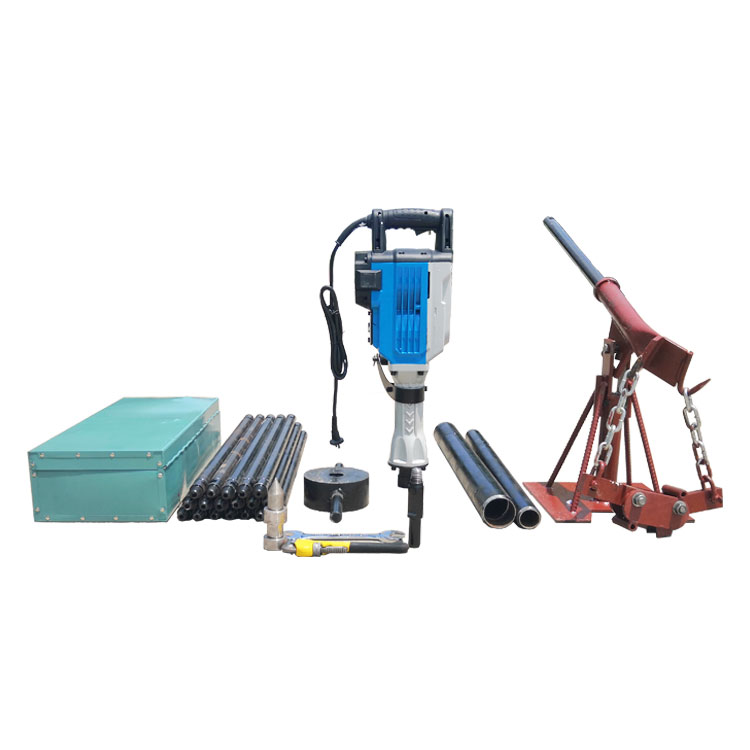

BZ-30D is a single-hand portable electric soil sampler upgraded from gasoline-powered BZ-30D, equipped with 220V 3600W full copper motor. Steady constant-power operation delivers faster drilling speed matching large hydraulic/pneumatic drills. Developed by Shandong Xiongtai Machinery, electric drive ensures safe, stable performance and lower labor workload.
II. Application Fields
Geotech survey, environmental/agricultural soil testing, groundwater, coastal & wetland geology, tailings inspection, archaeology, geochemical sampling, soil structure analysis
III. Core Strengths
Max 20m depth, 100mm large sample diameterOne-man fast sampling, user-friendly operationSamples stored directly in inner tubes for easy transport & storageDry drilling design – no drilling water needed on site
IV. Technical Specifications
| Item | Specification / Model |
| Bare Machine | BZ-30D |
| Power Output | 3.6kW |
| Operating Voltage | 220V |
| Handle | Vibration Dampening Handle |
| Ignition Mode | Switch Type |
| Impact Frequency | 2600 times/min |
| Impact Energy | 60J~79J |
| Power Consumption | Low Power Consumption |
| Drill Rod Full Size | 800mm*32mm |
| Main Unit Weight | 22kg |
| Coring Depth | 15m~20m |
| Coring Diameter | 54mm/73mm |
| Full Package Dimension | 850mm*450mm*450mm |
