I. Product Features

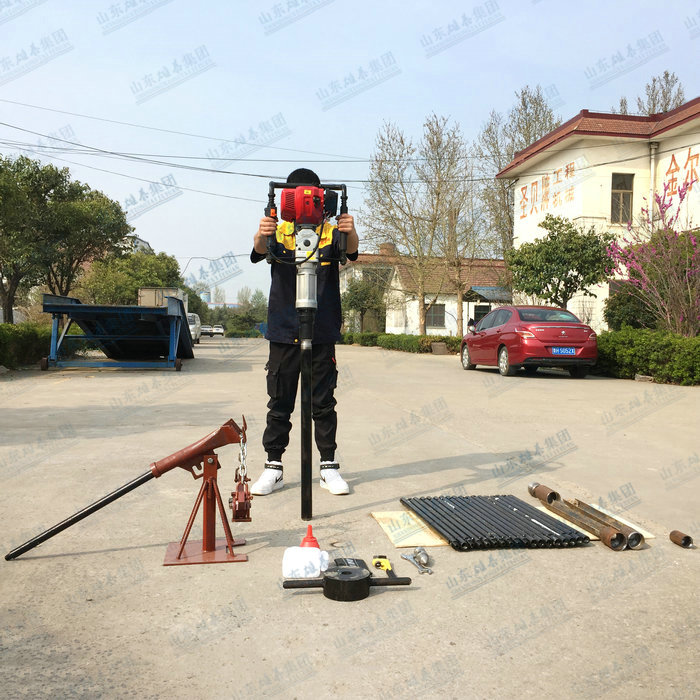

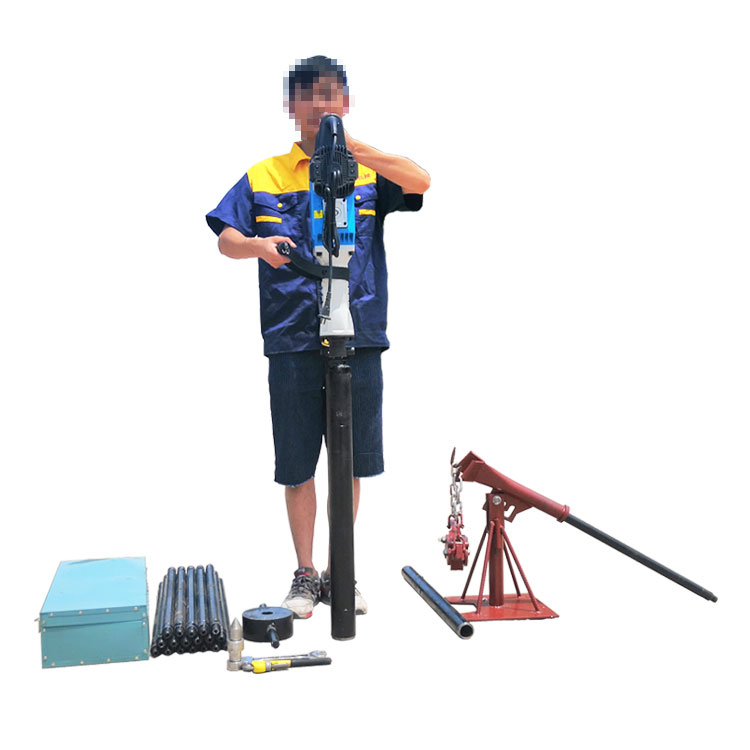

The BZ-30T portable soil sampling drill, produced by Shandong Xiongtai Machinery Group, is a gasoline-powered lightweight handheld soil sampler independently developed for single-person operation. Its performance rivals that of large, bulky hydraulic and pneumatic soil sampling drills.

Equipped with an upgraded gasoline power system, it delivers stronger impact force and deeper drilling capacity, meeting the demands of soil sampling projects at depths of 10 to 15 meters. It features straightforward operation, high safety standards and stable performance, greatly reducing labor strain for sampling staff while enabling fast, convenient sampling work.

II. Product Advantages

Adjustable Sampling DepthIt collects large-diameter, long soil samples, with a maximum sampling depth of 15 meters.Effortless OperationUser-friendly and easy to handle; one operator can complete sampling rapidly.Time & Labor SavingSoil samples are directly stored in inner tubes, facilitating easy transportation and preservation with less time and manpower cost.No Water Supply NeededIt adopts dry percussion drilling without water flushing, removing the trouble of transporting drilling water to job sites.

III. Application Scope

Geotechnical engineering investigation

Environmental soil survey

Agricultural soil survey

Coastal zone geological survey

Wetland environmental assessment

Groundwater exploration

Tailings reservoir inspection

Archaeological investigation

Secondary halo sampling for geophysical and geochemical prospecting

Soil structure characterization

IV. Technical Specifications

BZ-30T Portable Soil Sampling Drill
Power	Power	3.3HP
	Starting Method	Recoil Pull Start
	Fuel Consumption	0.55L/H
Blows Per Minute		1650 blows/min
Impact Energy		35J~65J
Sampling / Coring Depth		10M~15M
Main Unit Weight		25KG
